12v Switch Panel Power System (RGB) (Bluetooth)

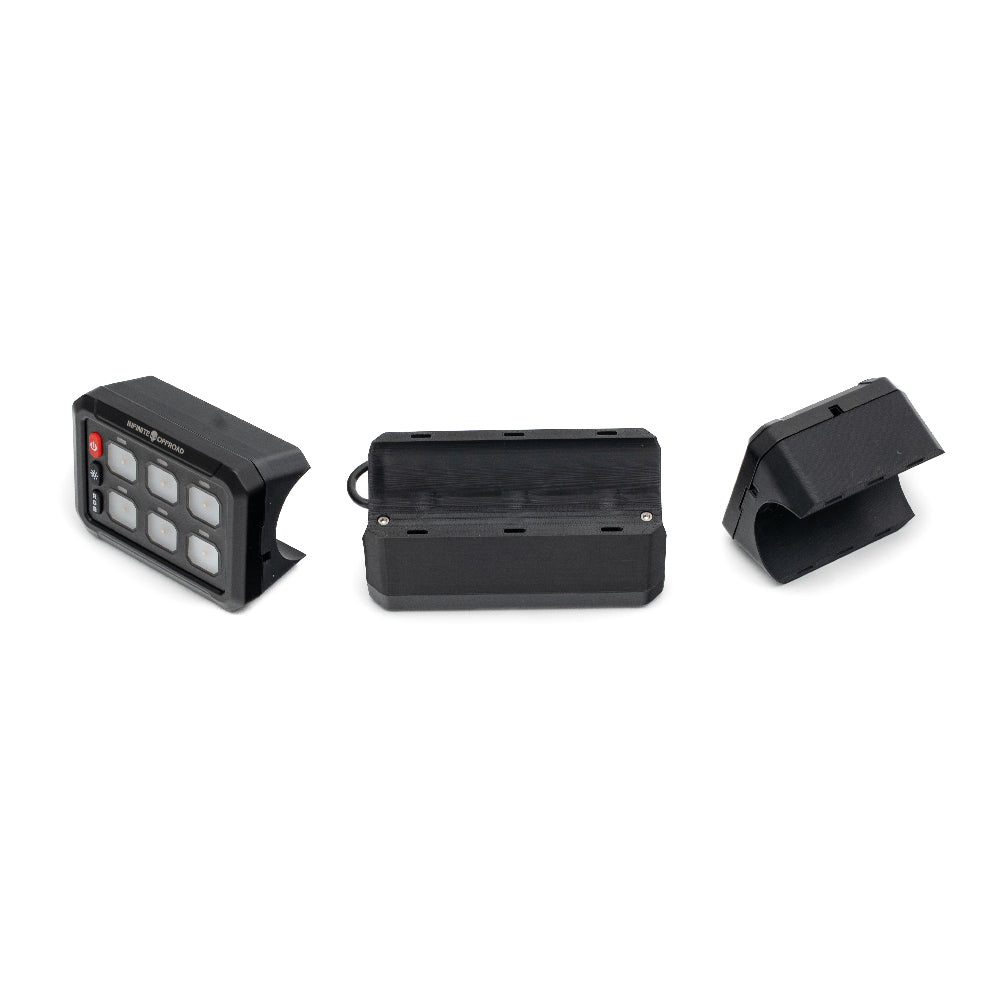

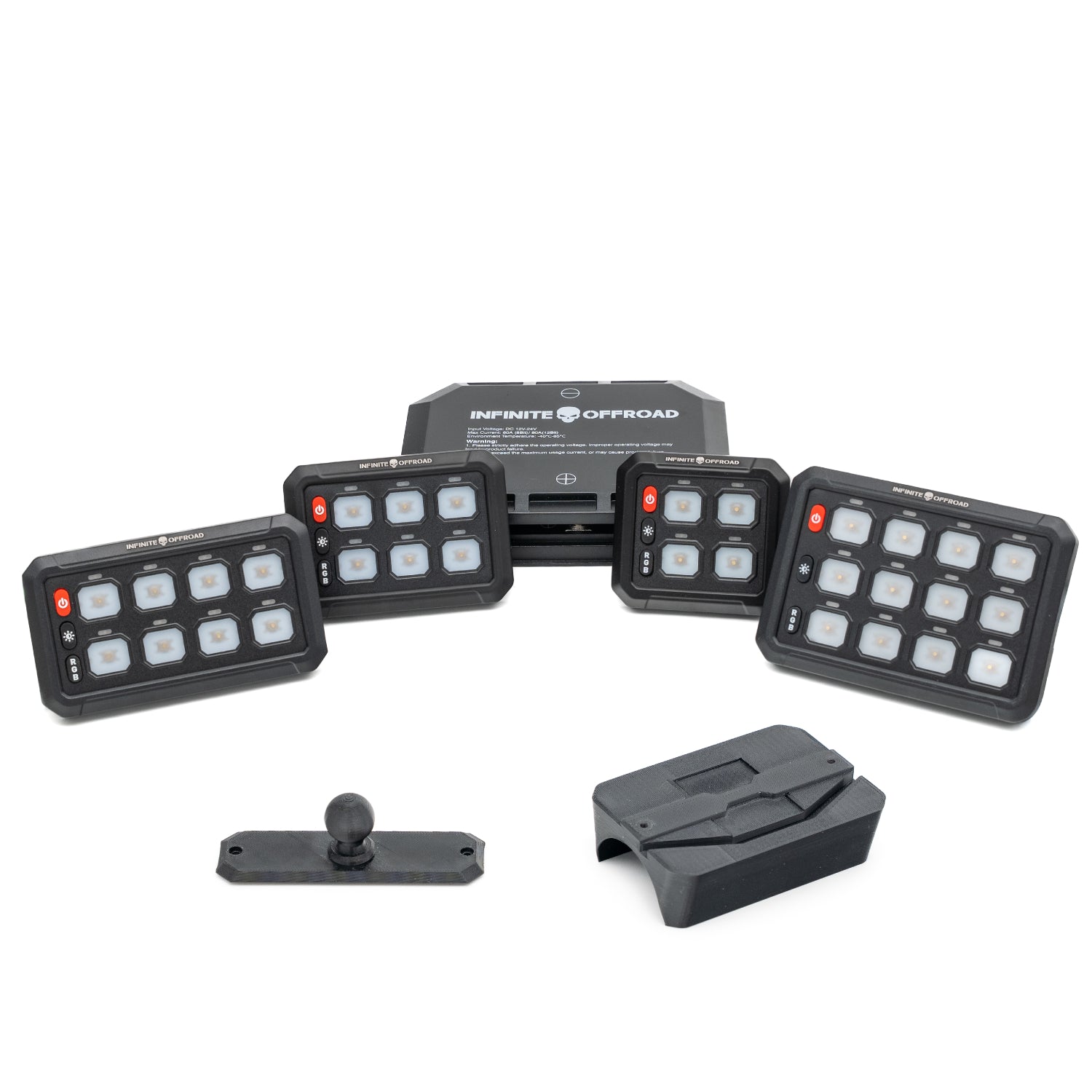

Power all of your 12v accessories with our new switch panel accessory controller!  Comes in your choice of 4, 6, 8 or 12 Buttons.   Now available with tube mount or ball mount options!

It also offers bluetooth app control, RGB back lighting and solid state power control module which eliminates the need of traditional relays and makes wiring and installation a breeze.  Choose your backlight color or have it change colors.  Use the app to turn on / off switches or create coustom colors for the backlighting.  Each switch can be set to momentary, on/off, or blink for turn signal.

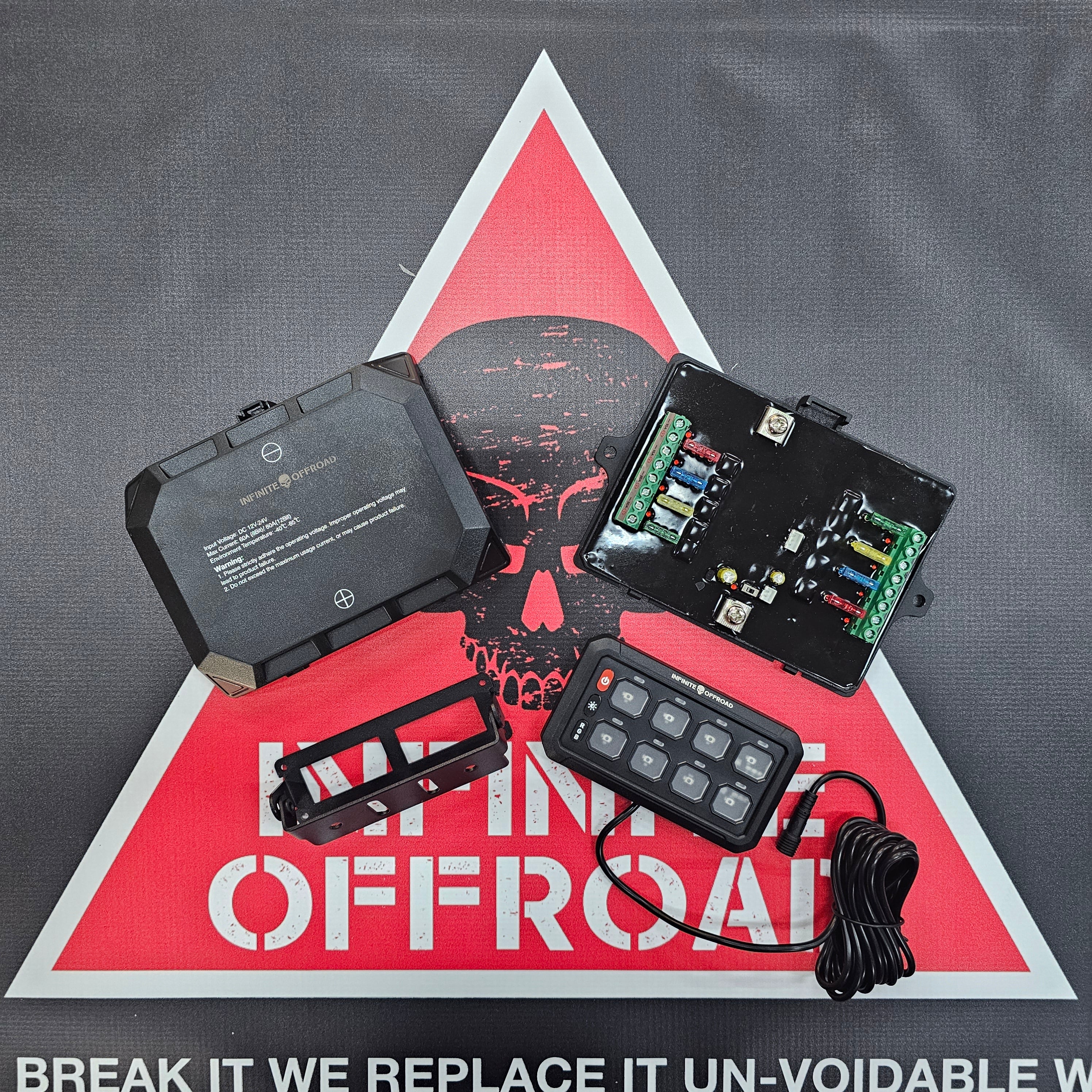

Save hours of splicing wires and wiring switches with this system.  Hook to your battery, ground & ignition power source then hook power and ground to the control unit for up to 8 accessories.  Each button when activated will illuminate the led next to the correct wiring posts to easily match to the correct output.

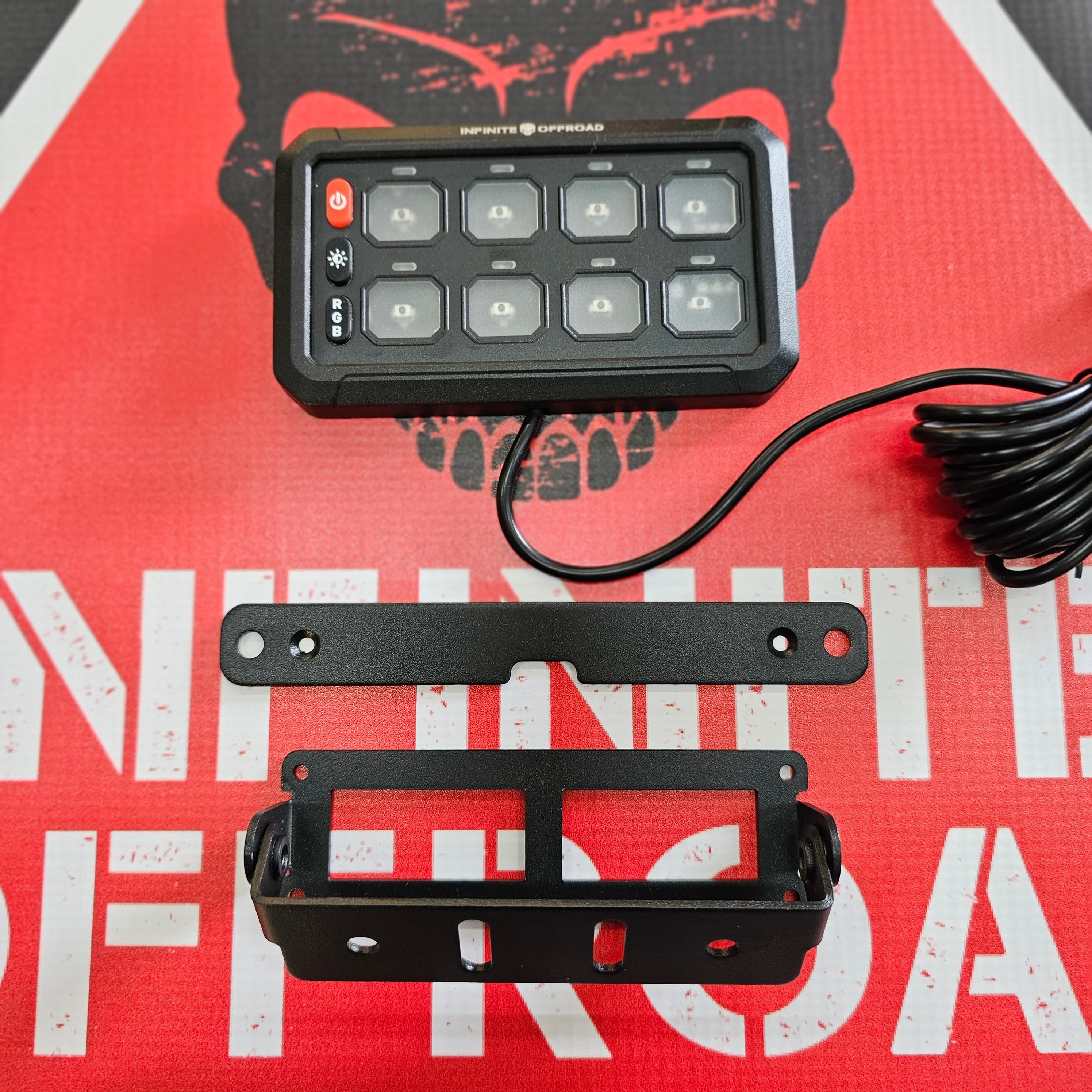

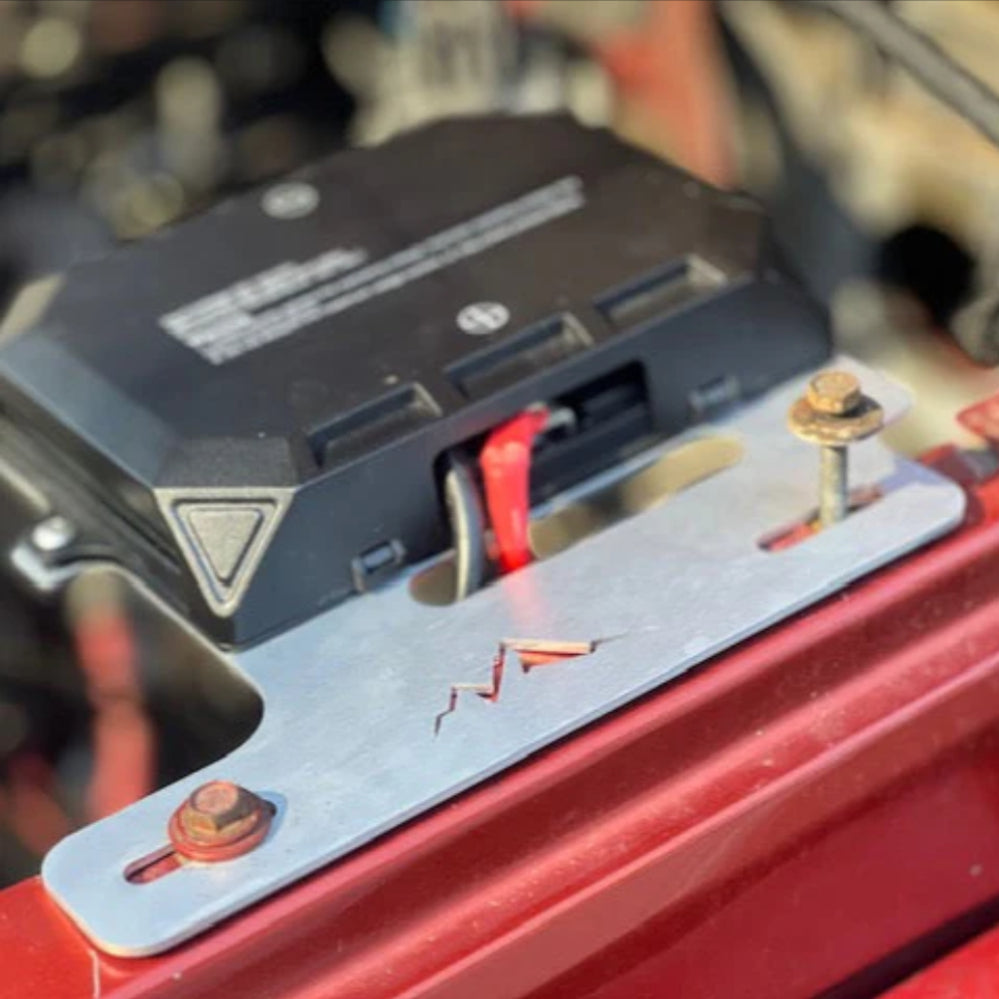

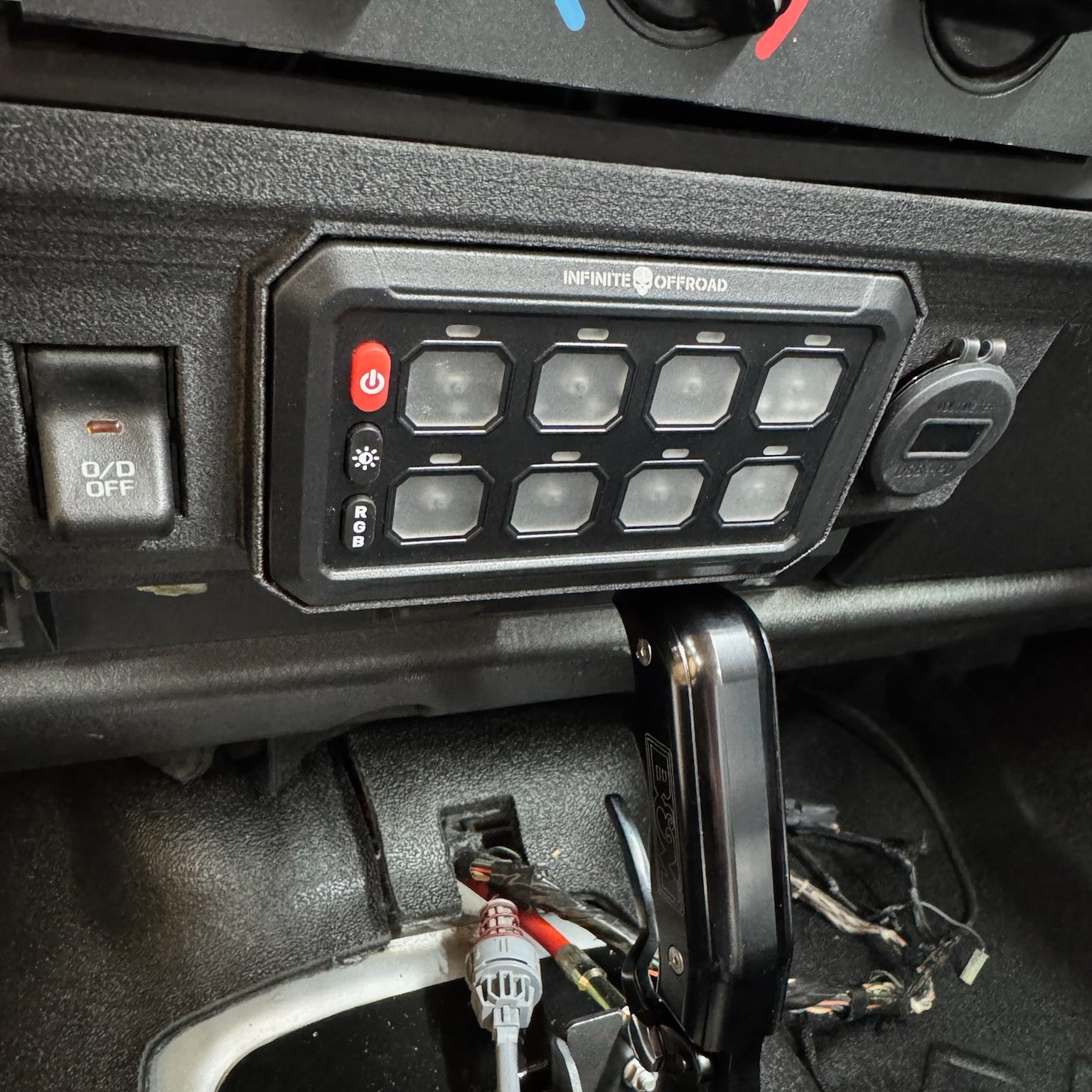

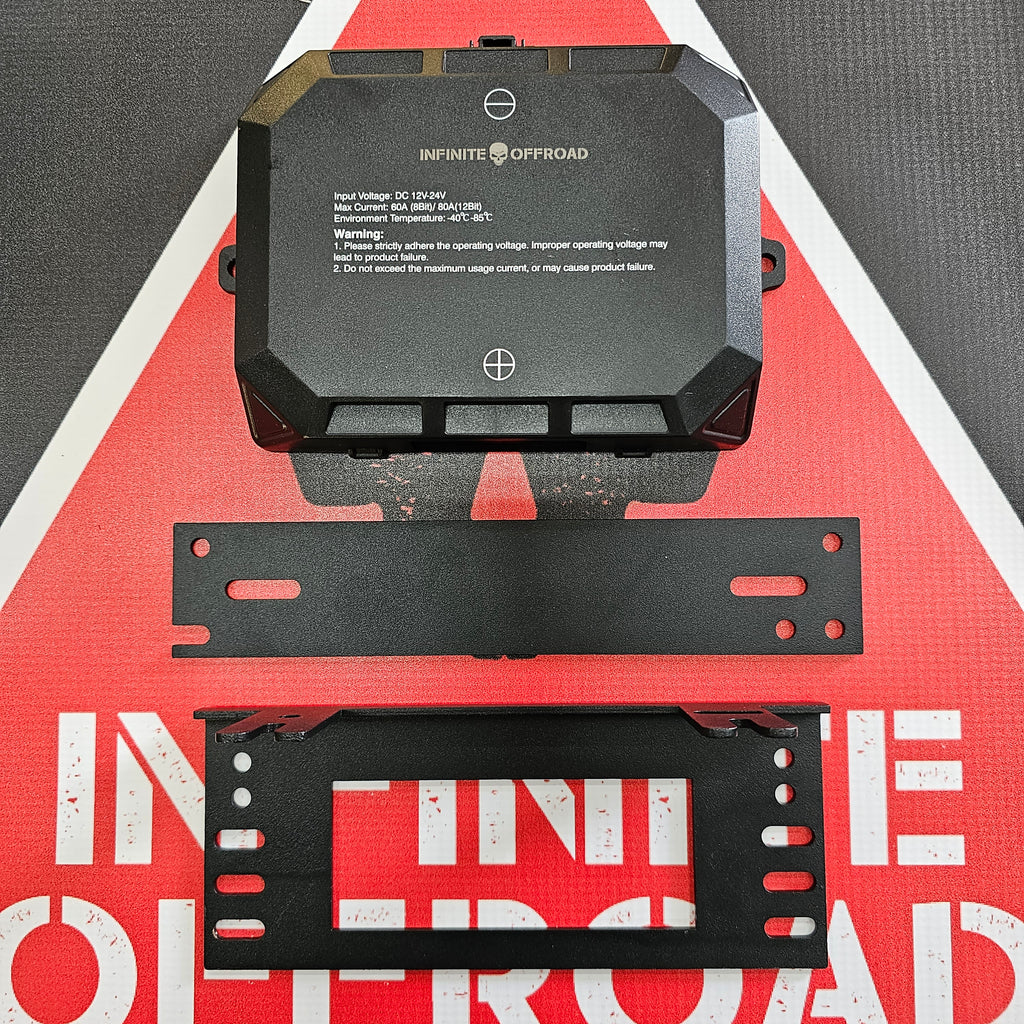

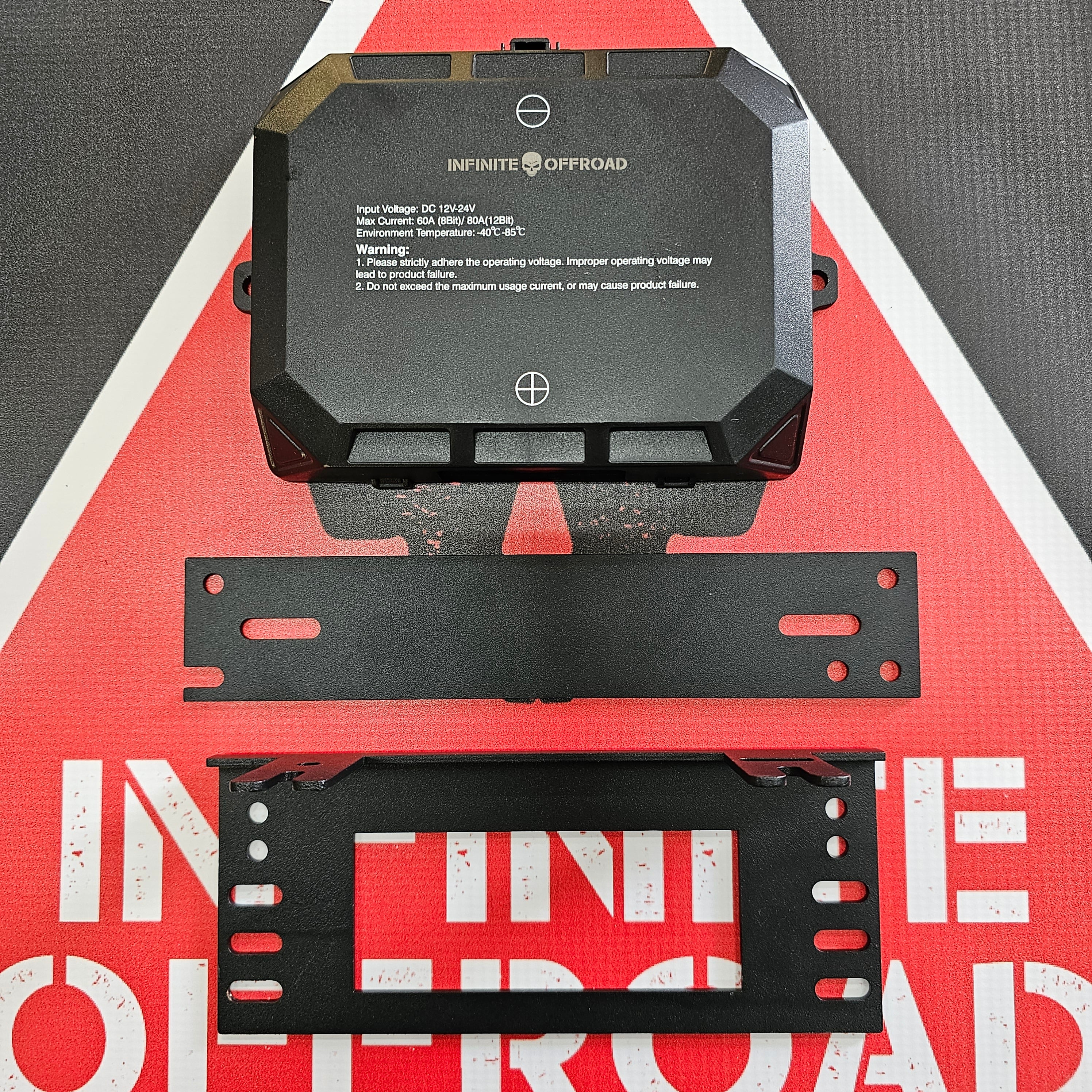

Great for a Jeep, Truck or UTV, makes wiring easy and clean.  The 8 button face plate had 2 mounting bracket options, flat or angled.  It can also be mounted to any flat surface with double sided VHB tape with the wire in exiting in front or behind the unit.  The main wiring box has 2 mounting options as well.

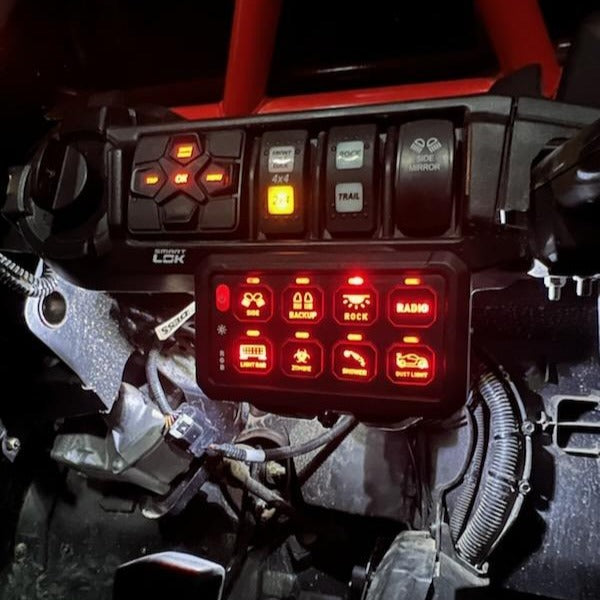

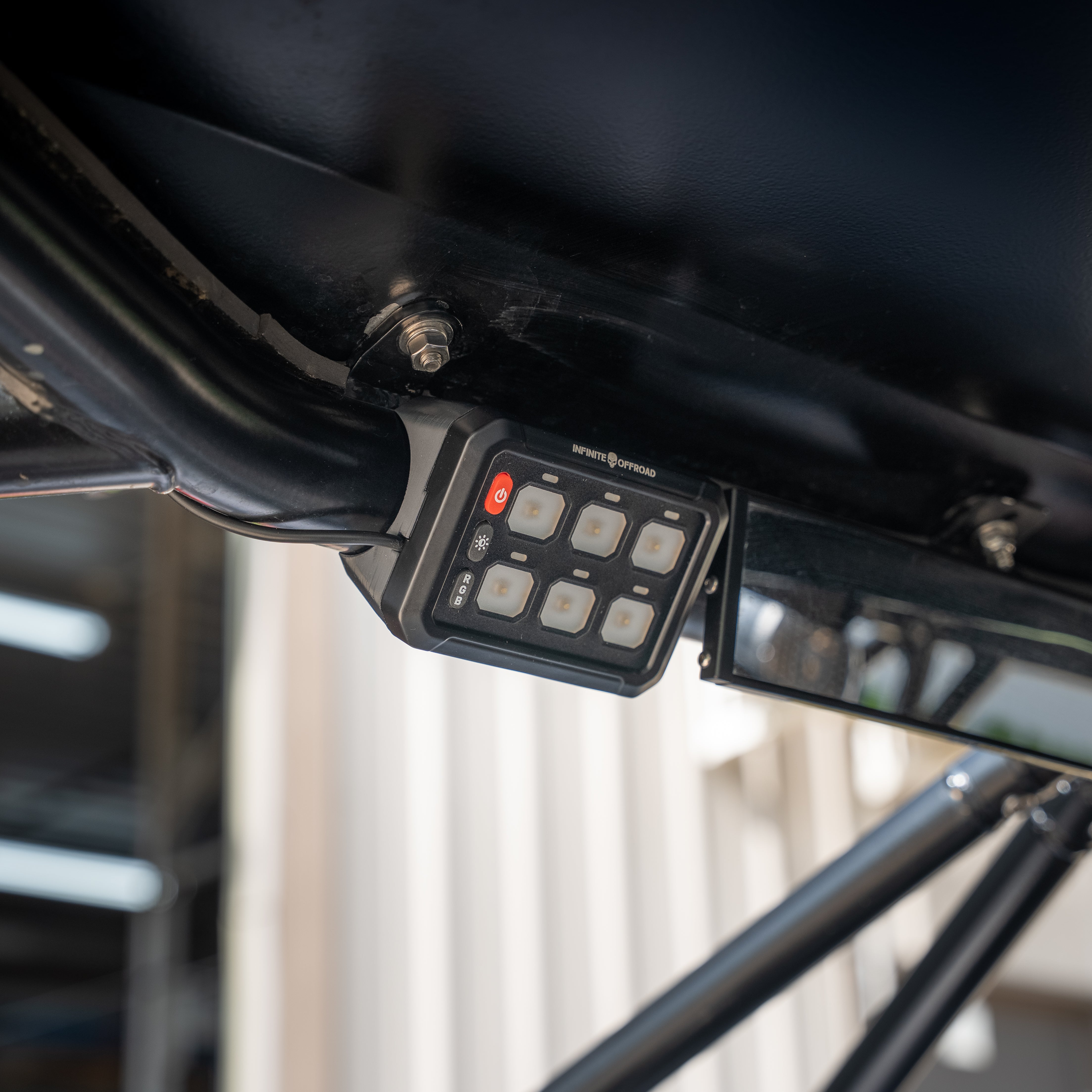

For UTV mounts check out STAY FLUSH MOTORSPORTS they have custom center consoles which available that mount into the console.  Click Here

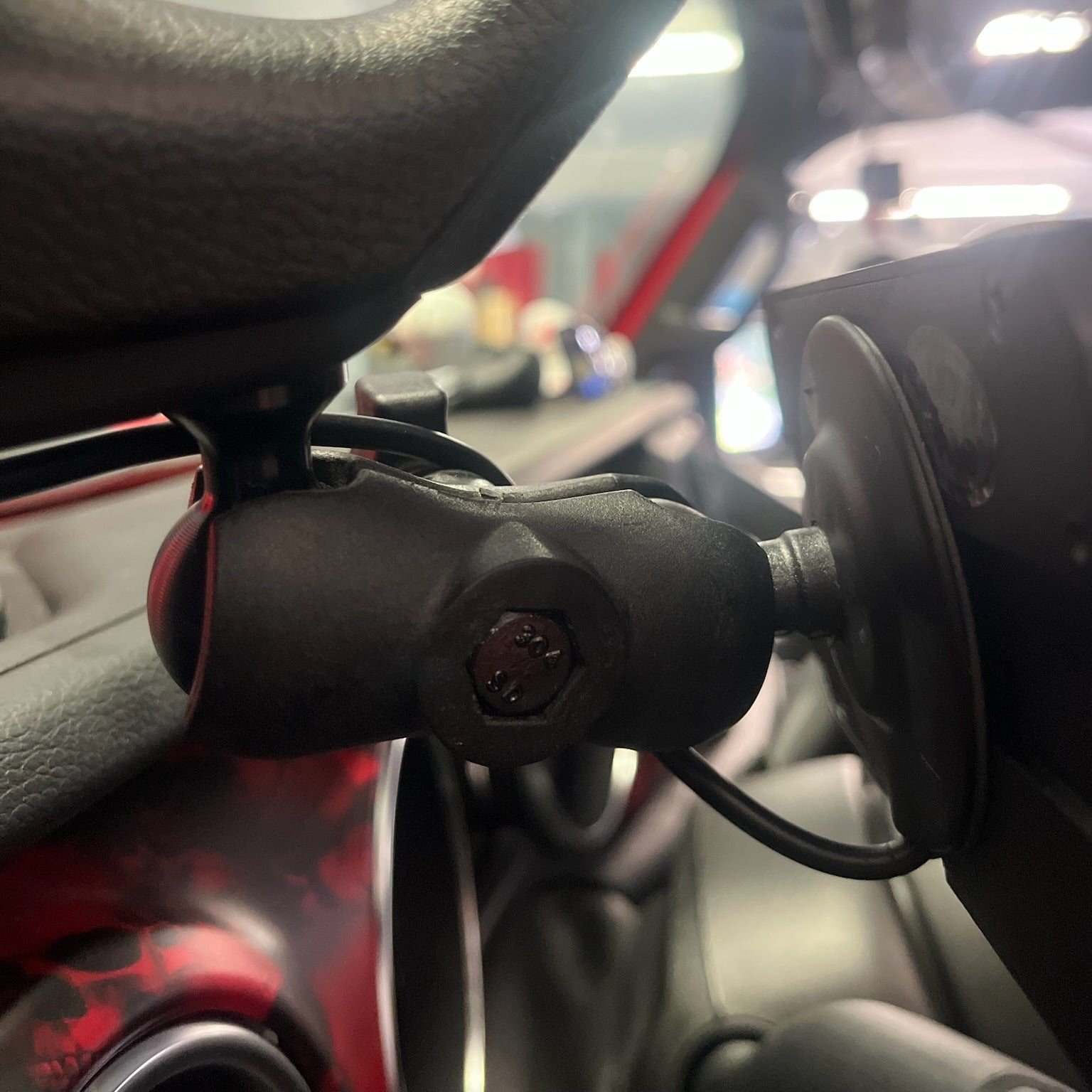

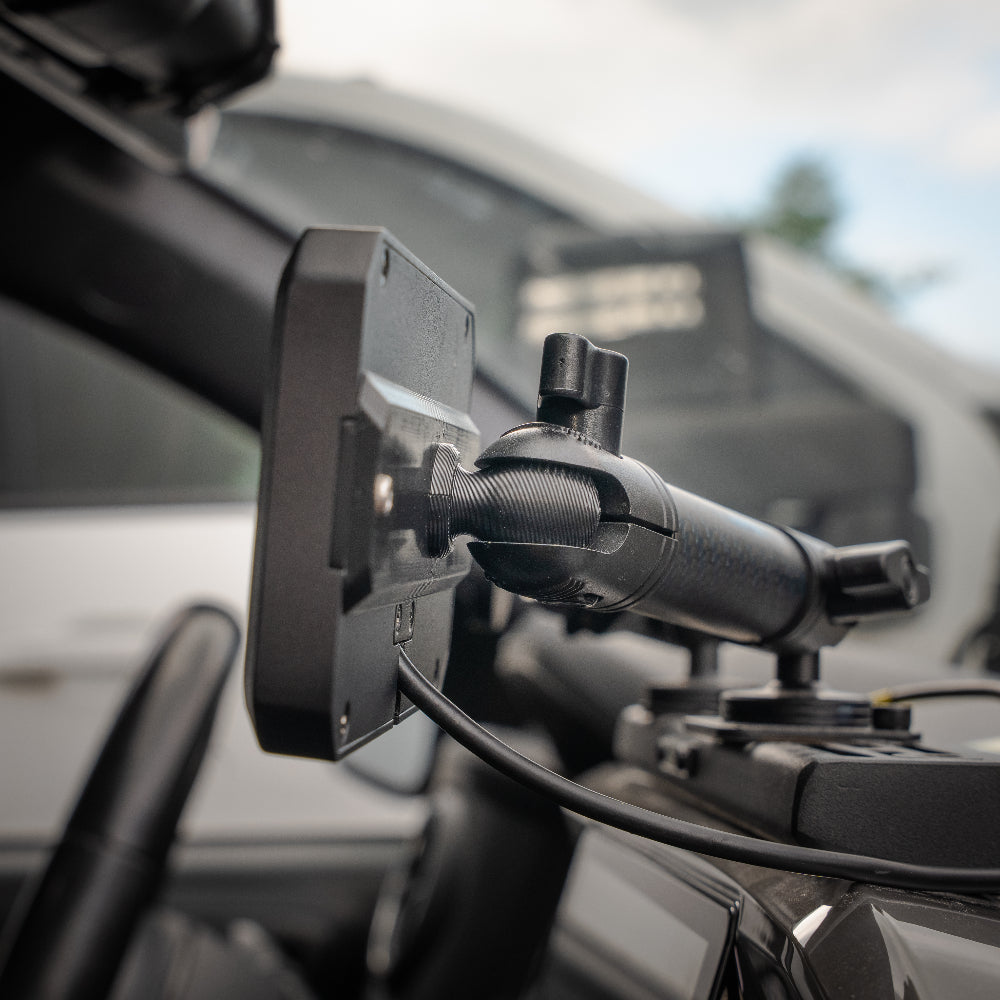

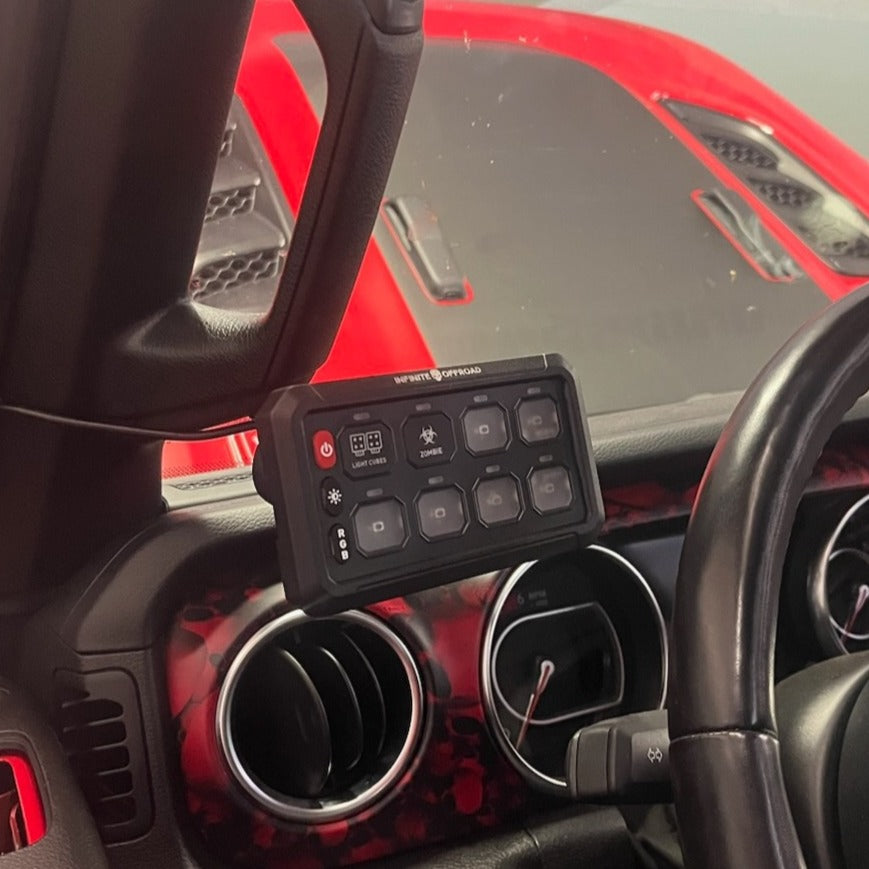

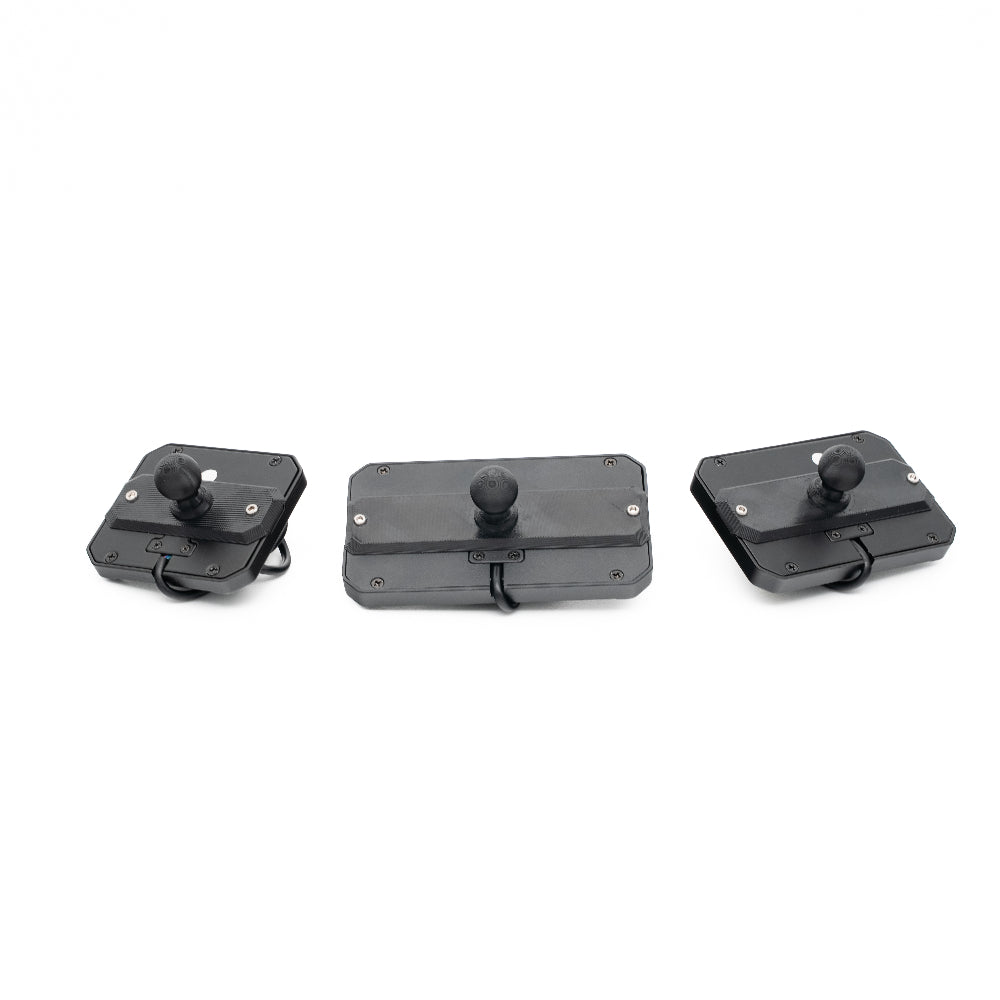

For Jeep mounts we suggest the ball mount we have availble with Bullet Point or CMM mounts.

SPECS:

• BLUETOOTH APP CONTROL
• SOLID STATE PROTECTION & DESIGN (NO RELAYS TO FAIL)
• RGB BACKLIGHTING
  • CHOOSE STATIC COLOR
  • SET TO CHANGE COLORS
• ABILITY TO DIM BRIGHTNESS
• EACH BUTTON HAS 3 PROGRAM OPTIONS
  • ON / OFF
  • MOMENTARY
  • BLINK (TURN SIGNAL)
  • STROBE
• 2 x 10A, 2 x 15A, 2 x 20A, 2 x 30A CIRCUITS

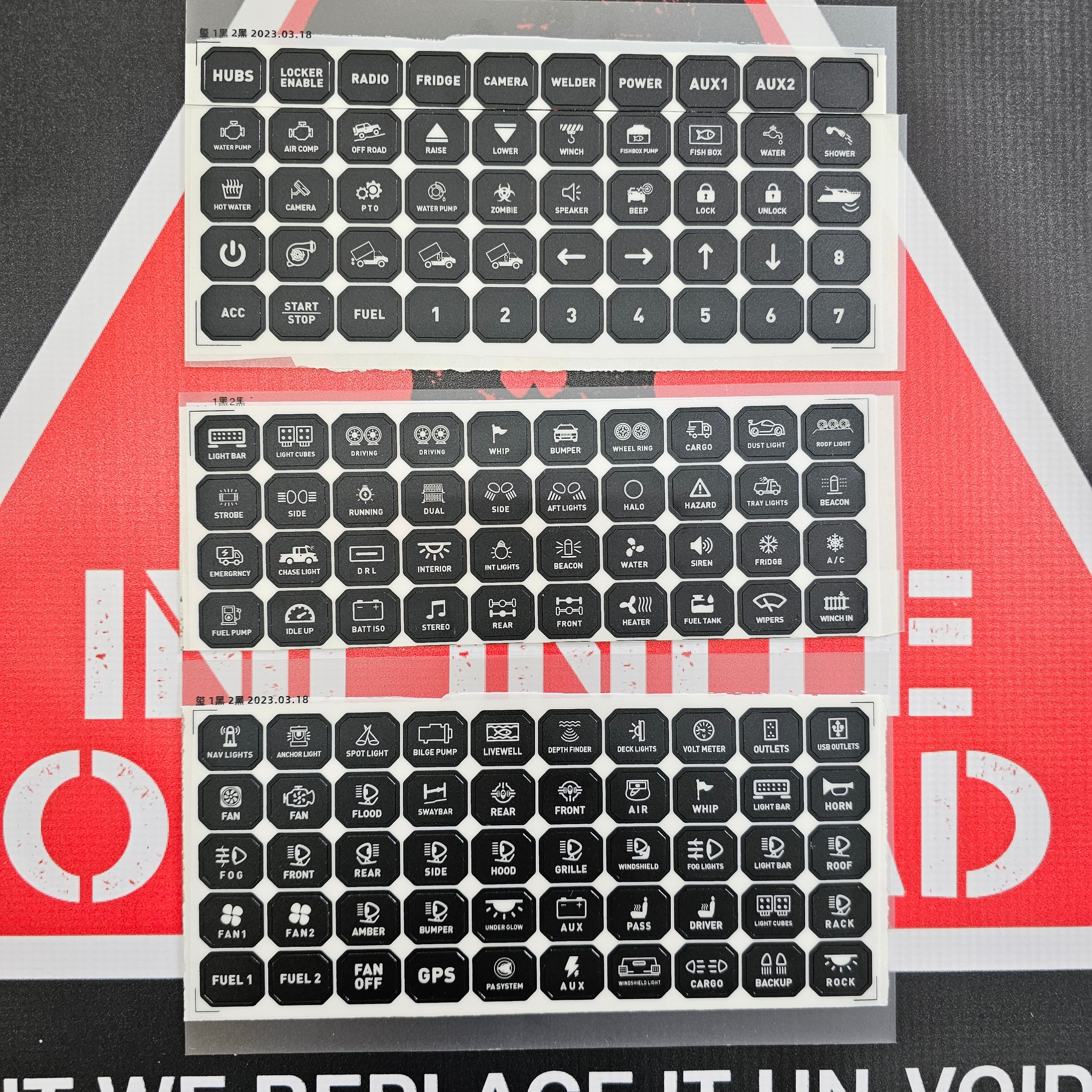

• STICKERS TO CUSTOMIZE YOUR BUTTONS
• UNIT ACTIVATED WITH EITHER KEYED OR BATTERY POWER

BLUETOOTH APP DOWNLOAD

CLICK TO DOWNLOAD GOOGLE

CLICK TO DOWNLOAD APPLE

INSTRUCTIONS

CLICK TO DOWNLOAD BLUETOOTH INSTRUCTIONS

CLICK TO DOWNLOAD INSTALL INSTRUCTIONS

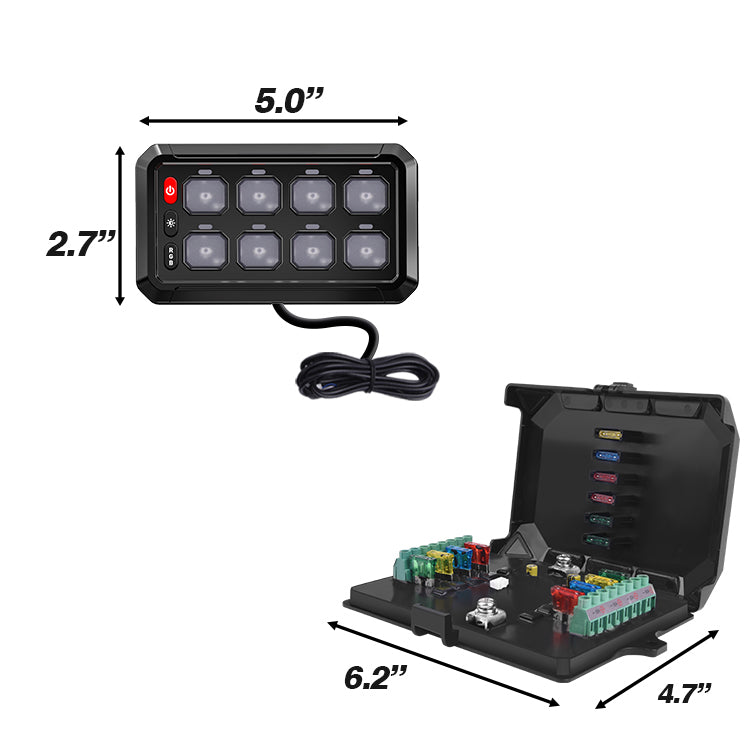

TECH SPECS & DIMENSIONS

12 BUTTON: FACEPLATE - 5" x 3.5"

• 80 AMP / 960W
• 30A x 4, 20A x 2, 15A x 2, 10A X 4

8 BUTTON: FACEPLATE - 5" x 2.75"

• 60 AMP / 720W
• 30A x 2, 20A x 2, 15A x 2, 10A X 2

6 BUTTON: FACEPLATE - 4" x 2.75"

• 60 AMP / 720W
• 30A x 1, 20A x 2, 15A x 2, 10A X 1
