2" Bolt On Throat Neodymium Driver with Spacer, 2" Throat Phenolic VC 680 Watts and PRO-HA52/BK Horn 680 Watts 117dB 8 Ohm Mounting Depth 5.22" Throat

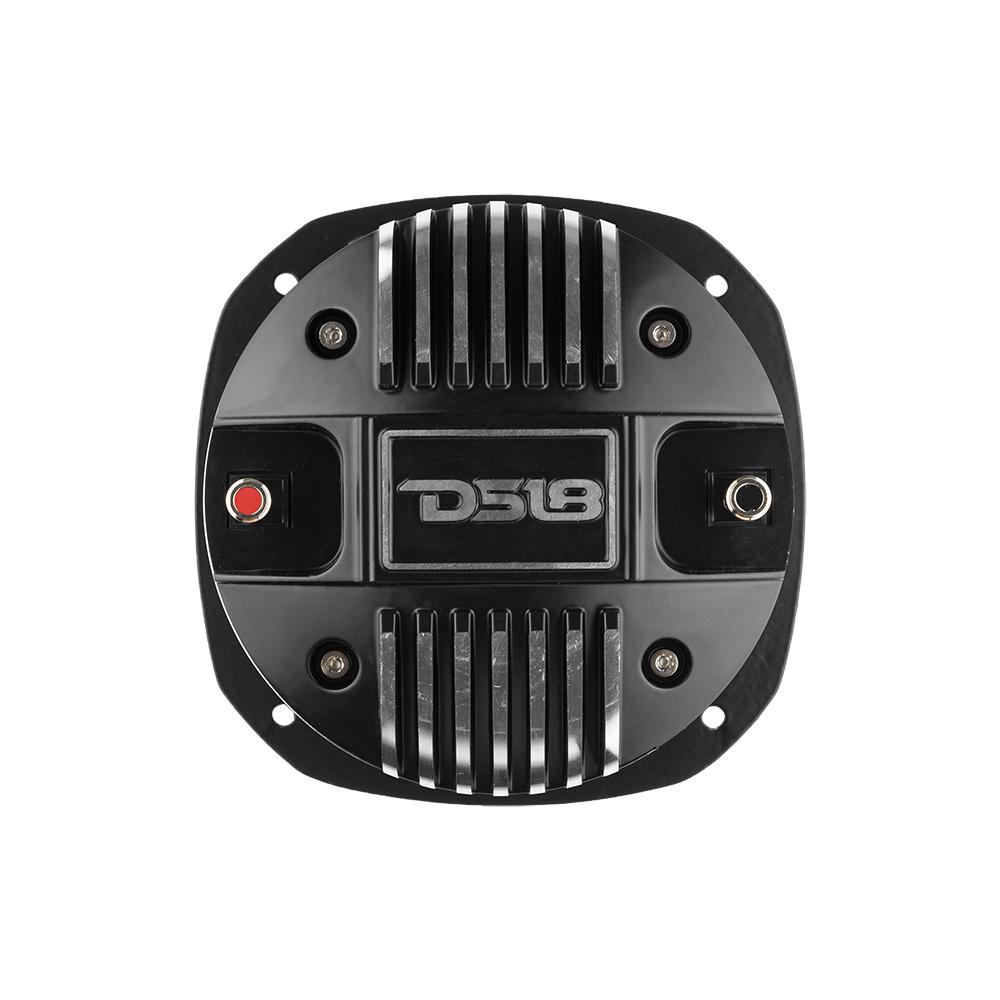

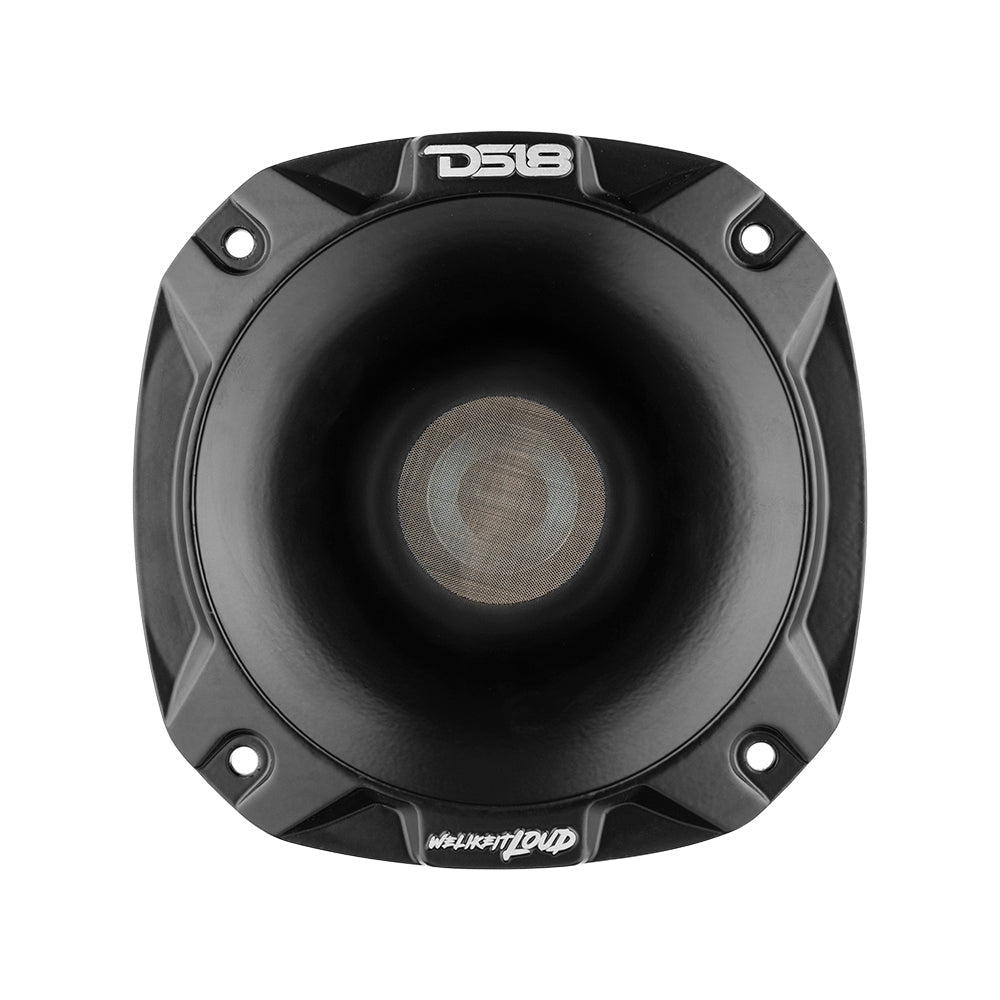

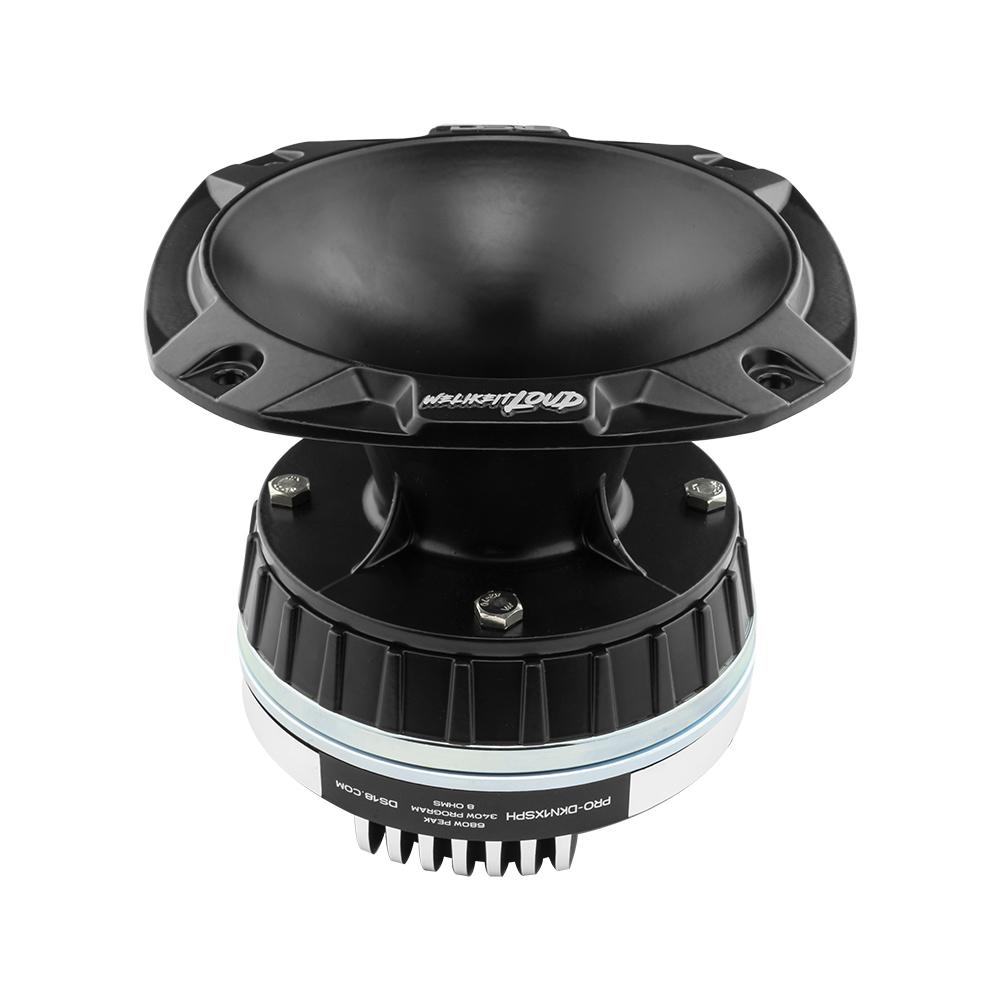

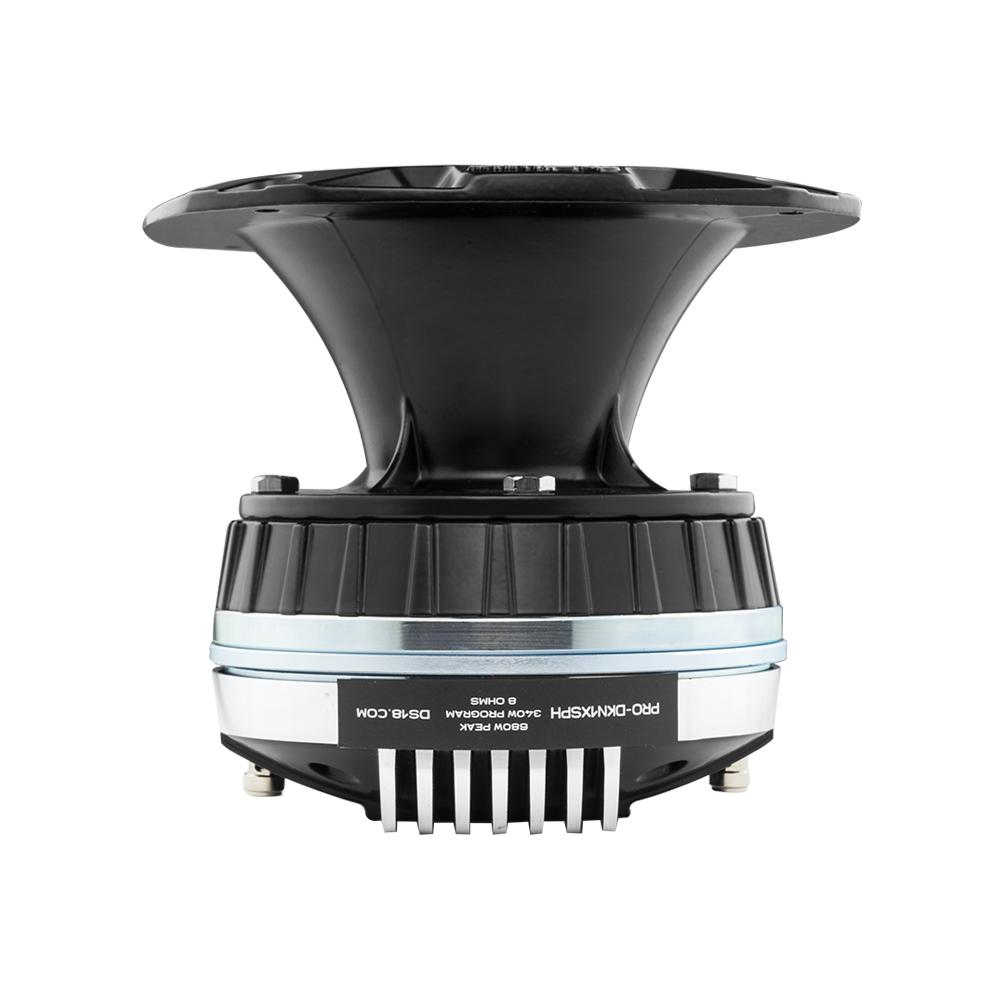

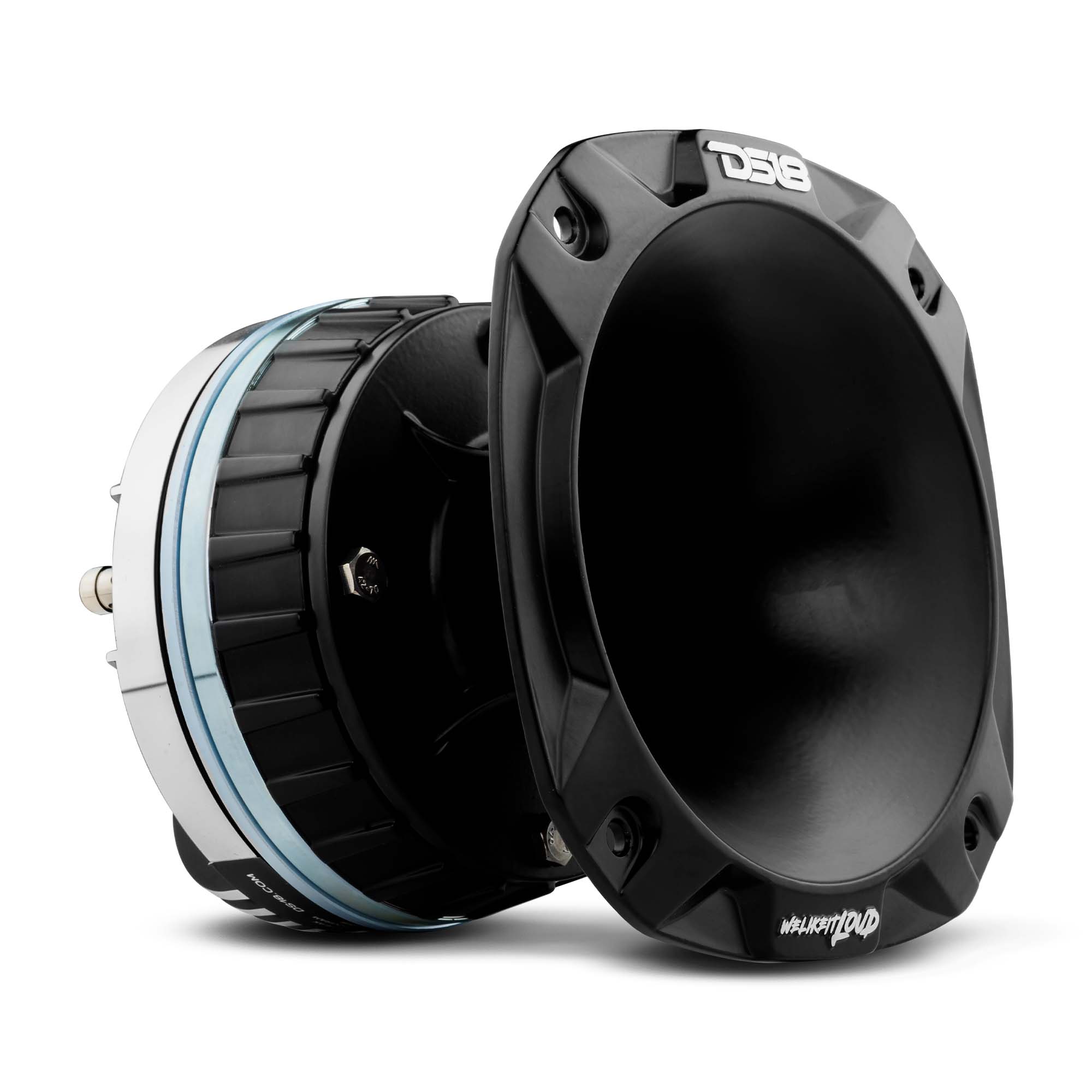

DS18 PRO-DKN1XSPH 2" Bolt On Throat Neodymium Driver with Spacer, 2" Throat Phenolic VC 680 Watts and PRO-HA52/BK Horn 680 Watts 117dB 8 Ohm Mounting Depth 5.22" Throat

The DKN1XSPH includes the DS18 DRN1 driver plus our HA-52 shorty throat so you only need 5.2 inches mounting depth to mount these ear ripping neo drivers. The throat is plastic with DS18 logos and made for maximum directional efficiency. With an AES power handling of 170w and peak at 680w you will be sure to draw everyone's attention to your audio system

Highlights

• PRO-DRN1 neodymium driver offers the highest DB at the greatest efficiency offered for war blasting high range frequencies
• Included HA-52 driver included to make this driver short and light and able to mount in most shallow depth boxes
• DS18 DB spacer included to maximize Decibels with new technology that increases loudness without extra wattage required

Technical Details

Download PRO-DKN1XSPH Product Manual

Throat Diameter	2"
Installation Type	Bolt-on
Nominal Impedance	8 Ohms
Peak Power Handling	680W
Program Power Handling	340W
AES Power Handling	170W
Sensitivity (1w/1m)	117 dB
Frequency response	630Hz-16KHz
Recommended HI Pas Crossover	900 Hz
Motor
Voice Coil Diameter	2.03"
Voice Coil Former Material	Kapton
Winding Material	CCA
Diaphragm Material	Phenolic
Magnet Material	Neodymium
Magnet Size	5.27x 0.15"
Measurements
Overall Diameter	7"
Overall Depth	5"
Bolt Size	0.21"
Mounting Hole Diameter	6.3"
Motor Diameter	5.27"
Mounting Depth	5.22"
