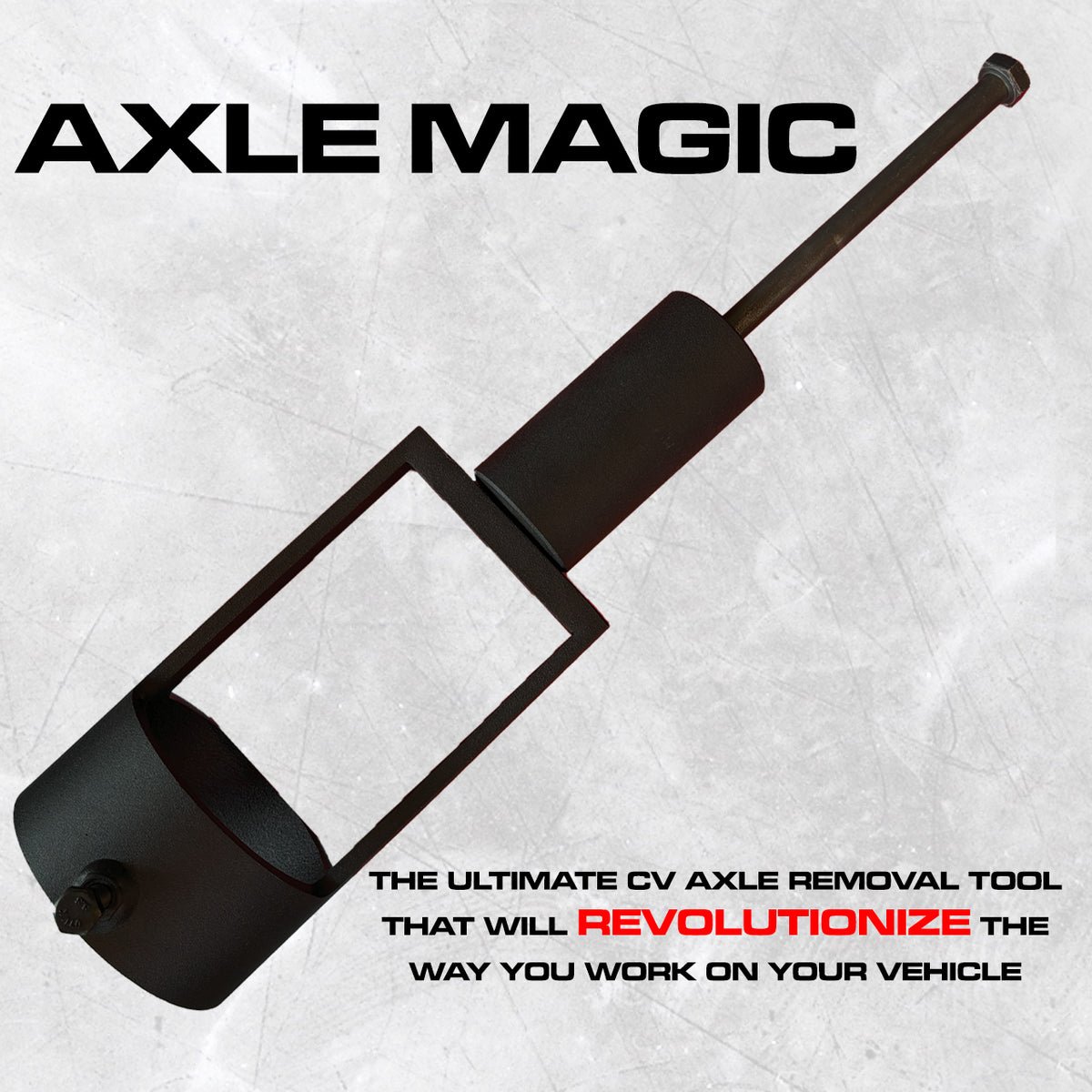

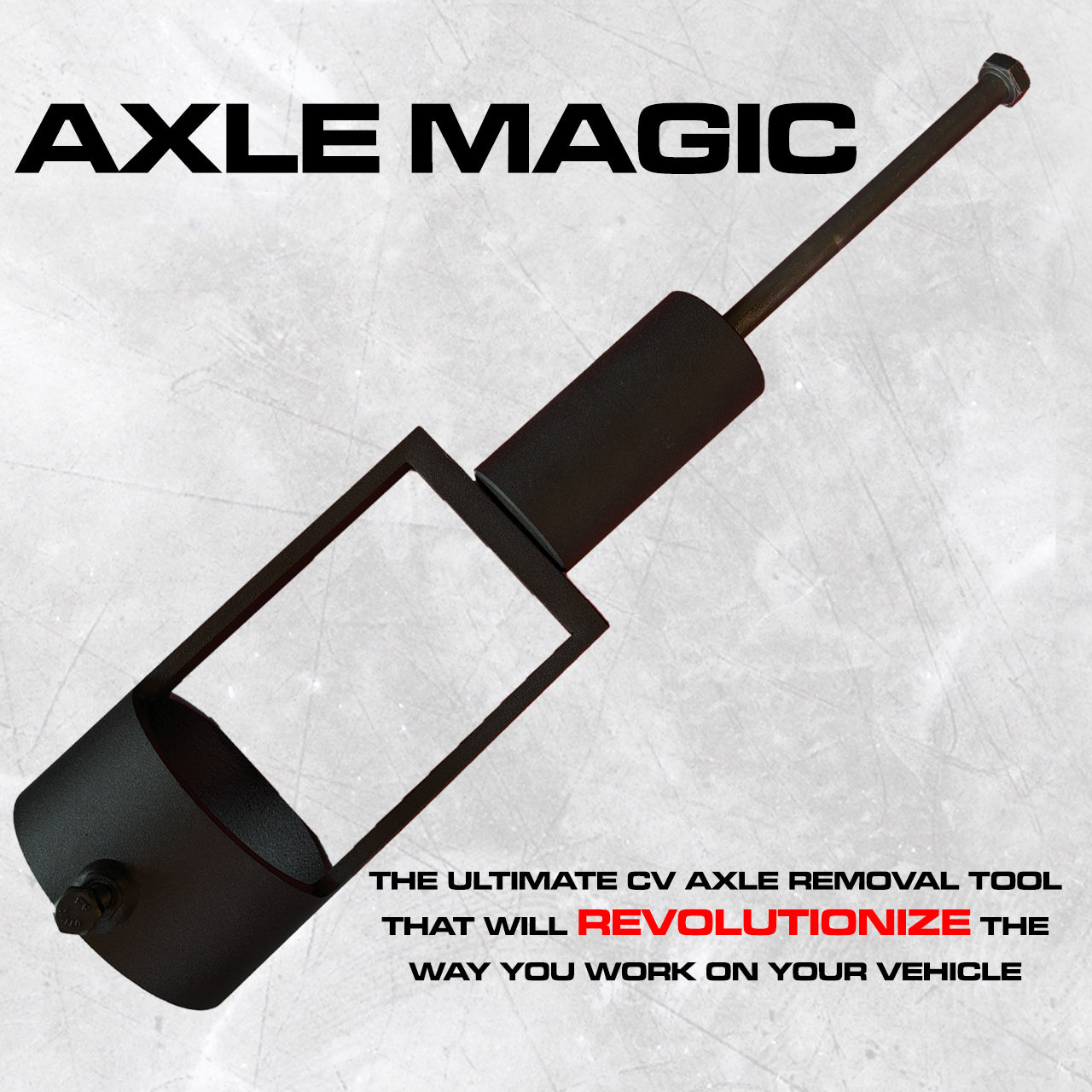

Axle Magic CV Axle Puller Tool

Axle Magic is a CV axle removal tool designed to attach to a stubborn inner CV cup at the differential. When the cup remains stuck during axle service, the tool provides a direct attachment point for removal.

Patented Design (Patent #17/173,921)
Free Shipping

Applications and sizing

This listing offers the XL size (4.0 ID) for:

• Polaris RZR Pro R
• Can-Am Maverick X3
• Kawasaki KRX
• Other UTV Models
• Most ATVs, Cars, & Trucks

Confirm your model, CV cup dimensions and available working clearance before ordering, especially if your machine has aftermarket axles. A different cup design may affect tool fitment, even on one of the listed models.

How Axle Magic works

The demonstration shows Axle Magic positioned around an exposed inner CV cup and secured with its side bolts before removal. This connects the tool directly to the cup rather than relying on pulling the axle shaft alone.

Access and required disassembly depend on the vehicle and axle assembly. Use the demonstration as a visual reference alongside the service instructions for your machine.

Removal limitations

Severe corrosion or damaged splines can prevent normal extraction. These conditions may require additional disassembly and repair, even when using an axle puller.

• Kawasaki KRX rear axles: Corrosion can make the inner CV cup difficult to remove.
• Can-Am front axles: Twisted splines can prevent normal extraction.
• Polaris Ranger rear axles: Fertilizer exposure can contribute to corrosion and seized splines. This service caution does not confirm XL tool fitment for every Ranger.

Color options

Choose from the available powder-coat colors. Black is the base option; other colors carry an additional powder-coating charge. Allow the listed 2–3 days for powder coating.

Replacement hardware

• Side attachment bolts: two M8 × 1.25 × 40 mm bolts.
• Top bolt: M12 × 1.75 × 260 mm.

Demonstration video

Watch the existing Axle Magic customer demonstration to see the tool attached to an exposed CV cup and used for removal. The video shows one application; access and axle condition will vary.
