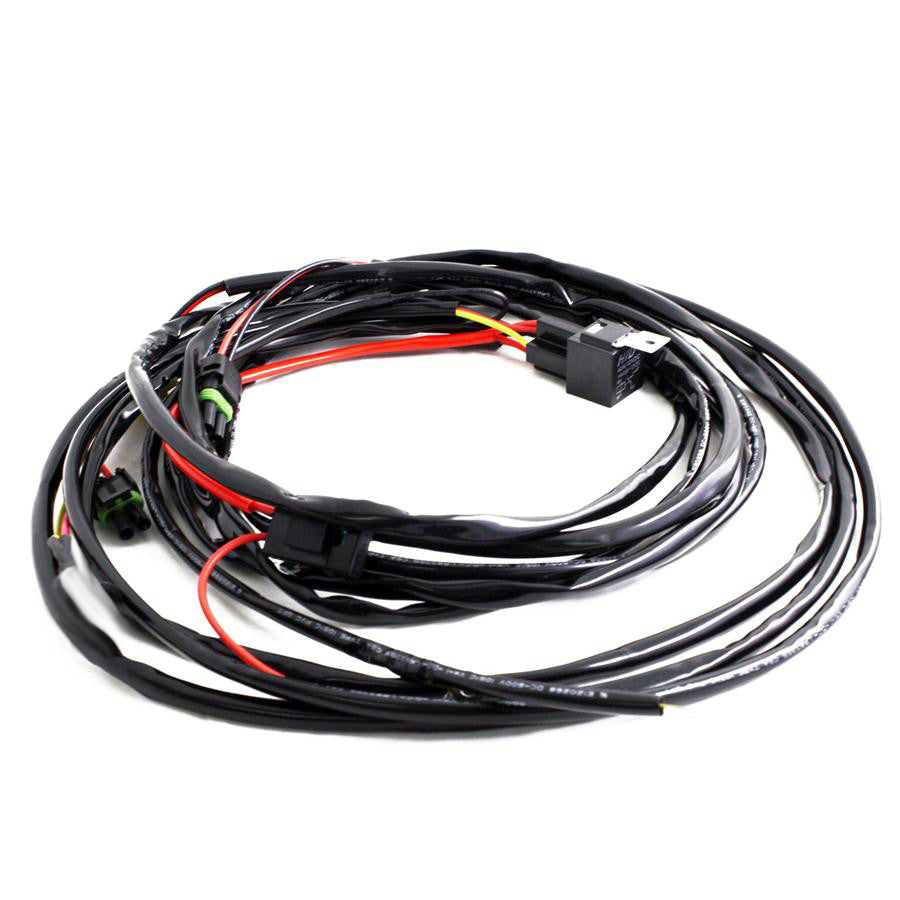

Baja Designs Squadron/S2/S1 2-Pin Hi-Beam Wiring Harness

Off-road vehicles often struggle with inadequate lighting control and power delivery when using high-output LED lights. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The harness taps into your vehicle's high-beam circuit to power two Baja Designs Squadron/S2/S1 lights, ensuring efficient power delivery.

Key Features

• Supports up to 150 Watts/12.5A for high-output lighting
• Hi-Beam tap for easy integration with vehicle's high-beam
• Weather-resistant connectors for reliable performance

Built To Solve: Squadron/S2/S1 Lighting Control

• Effortlessly control two Baja Designs Squadron/S2/S1 lights with a single harness.
• Integrates with vehicle's high-beam for operation.
• Handles up to 150 Watts to support high-output lighting setups.

Best For: Off-Road Enthusiasts

• Drivers needing reliable lighting control for off-road adventures.
• UTV owners looking for a universal wiring solution.
• Jeep and truck owners upgrading to high-output LED lights.

Specifications

• Engineered for: Squadron/S2/S1 Lights
• Power Capacity: 150 Watts Total / 12.5A Total
• Terminal Type: Splice Connectors
• Universal or Specific: Universal
• Manufacturer part numbers: 640164

What's in the Box

• Heavy-duty 12V wiring harness for two-pin lights such as the Squadron/S2/S1 series LED lights
• Universal fitment compatible with a variety of off-road vehicles, including trucks, Jeeps, and UTVs

Fitment

• Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.

Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.

FAQ

How does the Hi-Beam tap work?

The Hi-Beam tap allows you to easily connect the harness to your vehicle's high-beam circuit, powering two Squadron/S2/S1 lights.

What is the maximum power capacity of the harness?

The harness supports up to 150 Watts total, handling high-output lighting configurations.

Can this harness be used with other Baja Designs lights?

Yes, it is also compatible with legacy lights such as Fuego, Prerunner, and LaPaz.

Does the harness include a switch?

No, the harness does not include a switch; it uses a Hi-Beam tap for control.

What vehicles is this harness compatible with?

Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.

Why Baja Designs

Baja Designs specializes in off-road lighting solutions, offering efficient wiring harnesses for high-performance applications.

Complete Your Off-Road Lighting Setup

Enhance your vehicle's lighting with the Baja Designs Squadron/S2/S1 2-Pin Hi-Beam Wiring Harness. Order now from Dunes 2 Dezert SXS.
