120W dual-row LED light bar with CREE LEDs, IP67 waterproof sealing, a blacked-out inner bezel, and wide-plus-narrow combo beam - built for serious off-road use at a competitive price point.
✓ 120W
✓ 10,200 Lumens
✓ CREE LEDs
✓ IP67 Waterproof
✓ Dual Row
✓ 1-Year Warranty
Part Number: 5807-001
Product Overview ▼
The ORACLE Black Series 7D 22" 120W Dual Row LED Light Bar is built for off-road enthusiasts who demand serious output without sacrificing durability. Powered by high-output CREE LEDs - engineered in the USA - this light bar delivers 10,200 lumens of intense white light across a combo wide-and-narrow beam pattern, giving you both spread and reach on the trail.

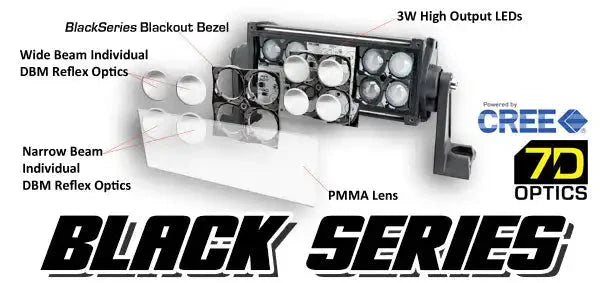

The 7D optic lens design concentrates and projects light with greater efficiency than standard optics, squeezing more usable output from each LED. The inner blackout bezel gives the bar an aggressive, purpose-built appearance when off while reducing internal glare and light bleed when on.
The rugged die-cast aluminum housing is built to take abuse - shockproof, waterproof to IP67, and rated for 50,000 hours of operation. Side-mounting brackets and all installation hardware are included.
Key Features ▼
- 10,200 raw lumens - intense illumination for off-road and auxiliary use
- 120W CREE LEDs - high-output emitters engineered in the USA
- 7D optic lens design - maximizes light output efficiency and projection distance
- Combo beam pattern - wide and narrow beams emitted simultaneously
- Black Series inner blackout bezel - aggressive stealth look, reduces glare and light bleed
- IP67 waterproof - sealed against water and dust intrusion
- Shockproof die-cast aluminum housing - built for harsh terrain
- PMMA polycarbonate lens - impact and scratch resistant
- Low power draw - 10A @ 12V / 5A @ 24V
- 50,000-hour lifespan
- Side-mounting brackets included
- 1-Year Warranty
Performance & Technical Specifications ▼
Part Number5807-001
Wattage120W
Raw Lumens10,200 lm
LED ChipCREE (Made in USA)
Beam PatternCombo (Wide + Narrow)
Color Temperature6,000K
Amp Draw10A @ 12V / 5A @ 24V
Ingress ProtectionIP67
Housing MaterialDie-Cast Aluminum
Lens MaterialPMMA Polycarbonate
Lens Design7D Optic
Lifespan50,000 hours
Weight5 lbs 7 oz
MountingSide-Mounting Brackets
Warranty1 Year
Vehicle Fitment ▼
Universal Auxiliary Lighting Application: Fits any vehicle with compatible mounting provisions. Verify mounting clearance, wiring-harness requirements, circuit capacity, beam placement, and local regulations before installation.
What's Included ▼
- (1) ORACLE Black Series 7D 22" 120W Dual Row LED Light Bar
- (2) Side-Mounting Brackets
- Installation Hardware
Installation Guide & Resources ▼
Estimated Installation Time: 1 hour
Experience Level: Advanced
Moderate mechanical or electrical work may be required.
Experience Level: Advanced
Moderate mechanical or electrical work may be required.
Always verify local regulations regarding auxiliary light usage. Some states prohibit use of forward-facing auxiliary lights on public roads.
