RGB+W Maverick X3 Headlight (Can-Am)

** DOES NOT FIT 2026 & NEWER MODELS WITH DUAL HEADLIGHT **

To add on additional Extensions, RGB+W Pods, Strips, Dome Lights, Whips, Accent lights or any other RGB+W compatible plug and play item to your kit click here.

Headlight Model Fitment: Can-Am X3

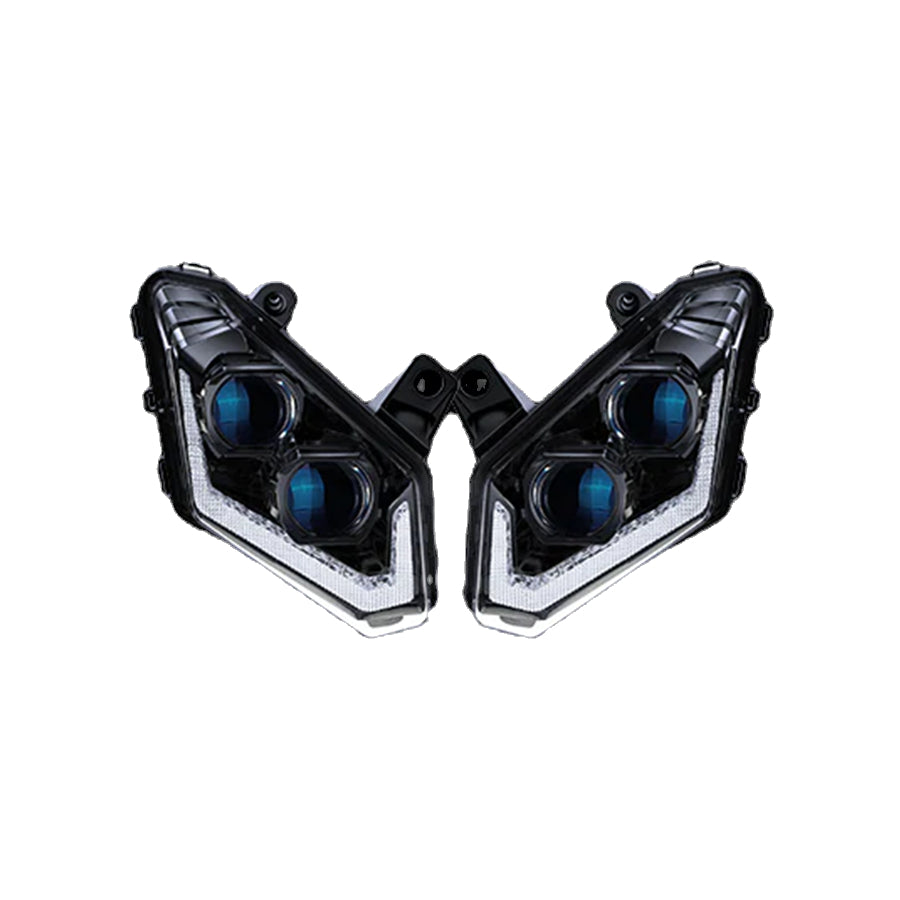

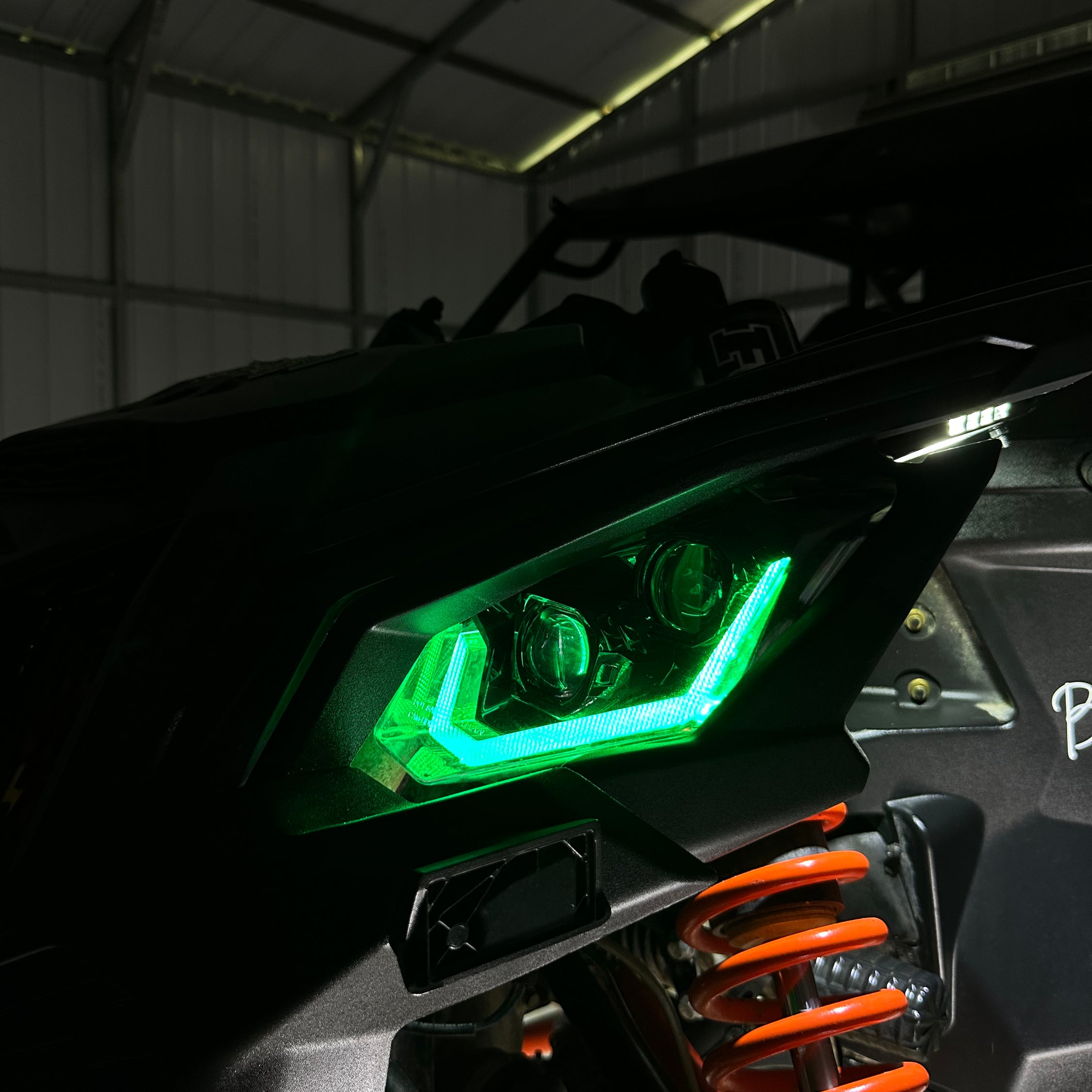

Introducing our new X3 headlights with RGB+W halo.  Brighter headlight with better looks!  We don't use cheap stick on halos, our full replacement headlight incorporates the halo and seamlessly connects with our RGB+W rock light system, or choose the dedicated controller in the drop down to run independently.

Did we mention we also have the best warranty on the market?  25 yr if you can break it we replace it warranty (includes accidental damage).

We offer two ways to control these lights:

No Controller: Add to RGB+W 5 Pin Rock Light System: Plug whips directly into our RGB+W rock light kit and run them together.  Includes needed wiring.

Include Dedicated Controller: This option allows you to run whips independently, if your not running our rock light system or do not want them directly linked to your rock lights.

*Rock light kit not included & you must order dedicated controller if your not currently running/ordering our rock light system*

DOWNLOAD INSTRUCTIONS & APP

DOWNLOAD INSTRUCTIONS & DIAGRAM

Click APPLE or ANDROID to Download the app

CONTROLLER DETAILS

Requires phone to use BT control via BLEDIM app.  Also includes extra RF remote, remote does not require line of sight it is paired with the controller.

BLUETOOTH APP CONNECTION:

• Download app BLEDIM in the app store.
• DO NOT connect to the device in your phone settings menu
• Once connected you can adjust/create colors and patterns as well as turn on and off, the controller should retain the last used setting when powered off then back on.

RF HANDHELD REMOTE PAIR OR LOCK REMOTE: To pair the remote if connection lost or lock it so other remotes cannot control.

• Hold green power button.
• Remove fuse from controller for 5 seconds, place back in.
• Continue to hold green power button for 3 seconds

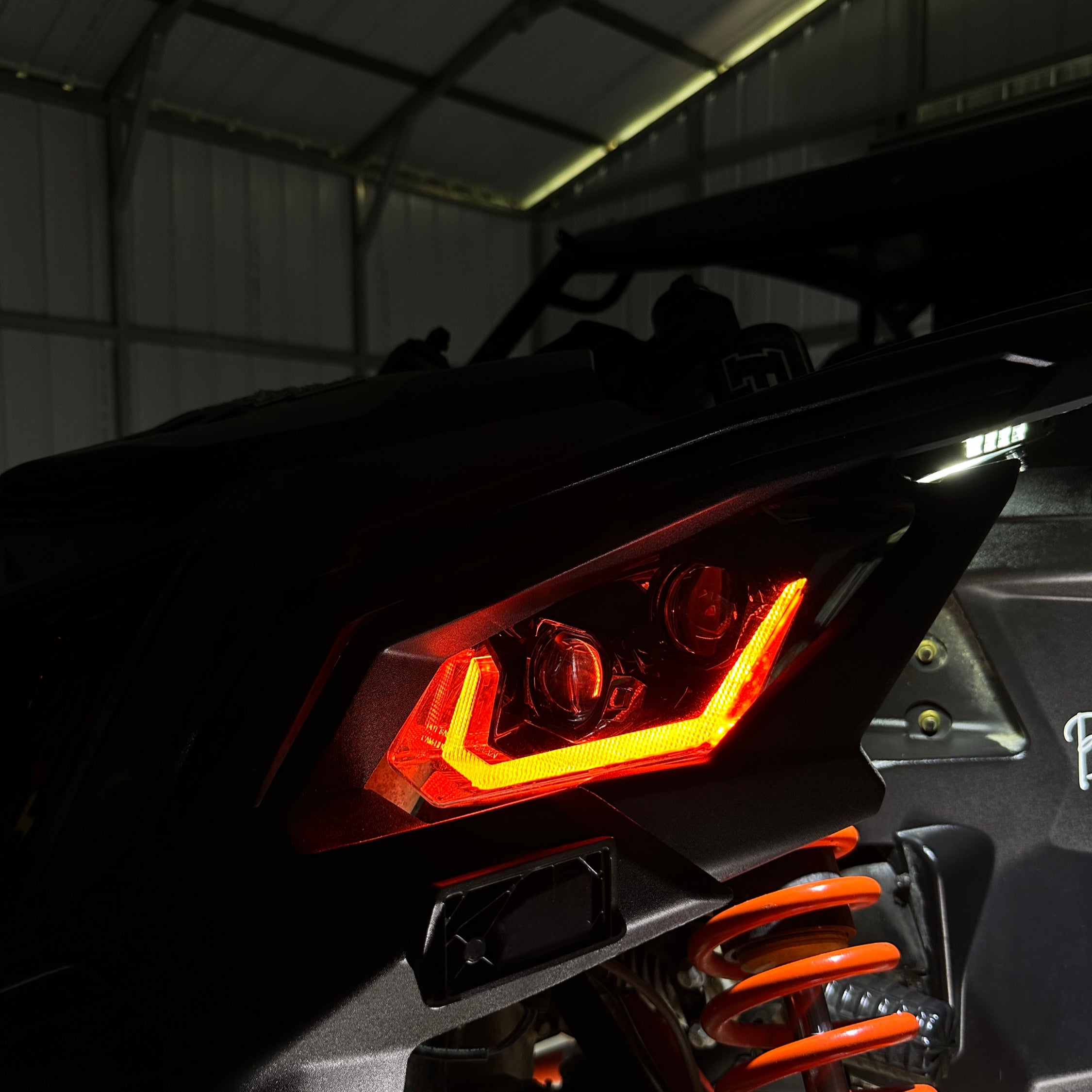

BRAKE/Red OVER RIDE: Connect blue wire to brake power wire, this will turn on RED even if the lights are turned off and will override any current color if already on, we suggest placing on its own switch to only activate when you want it to.

COURTESY WHITE OVER RIDE: Connect white wire to switch or cortesy lights, this will turn on white even if the lights are turned off and will override any current color if already on.

*Additional instuctions can be downloaded*
