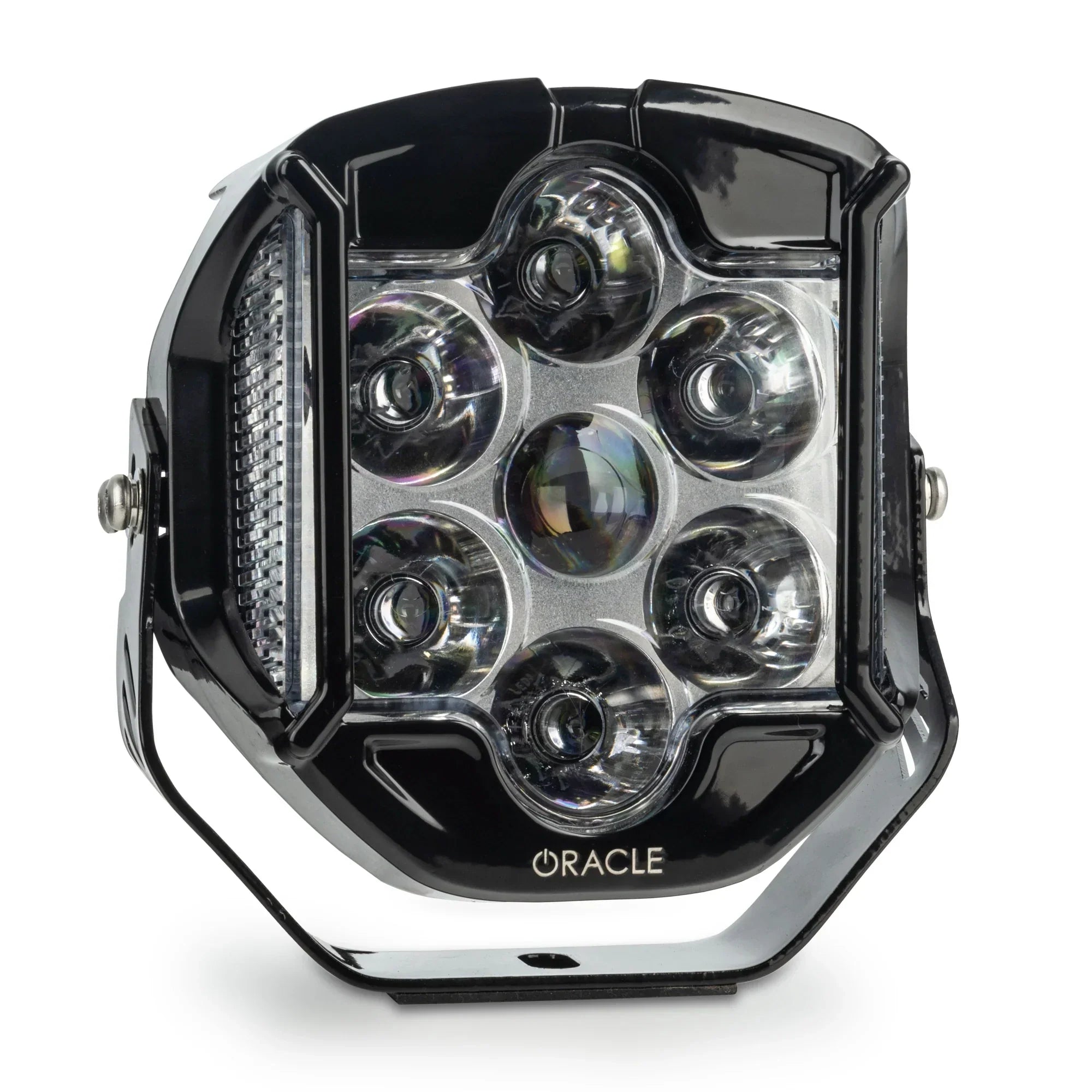

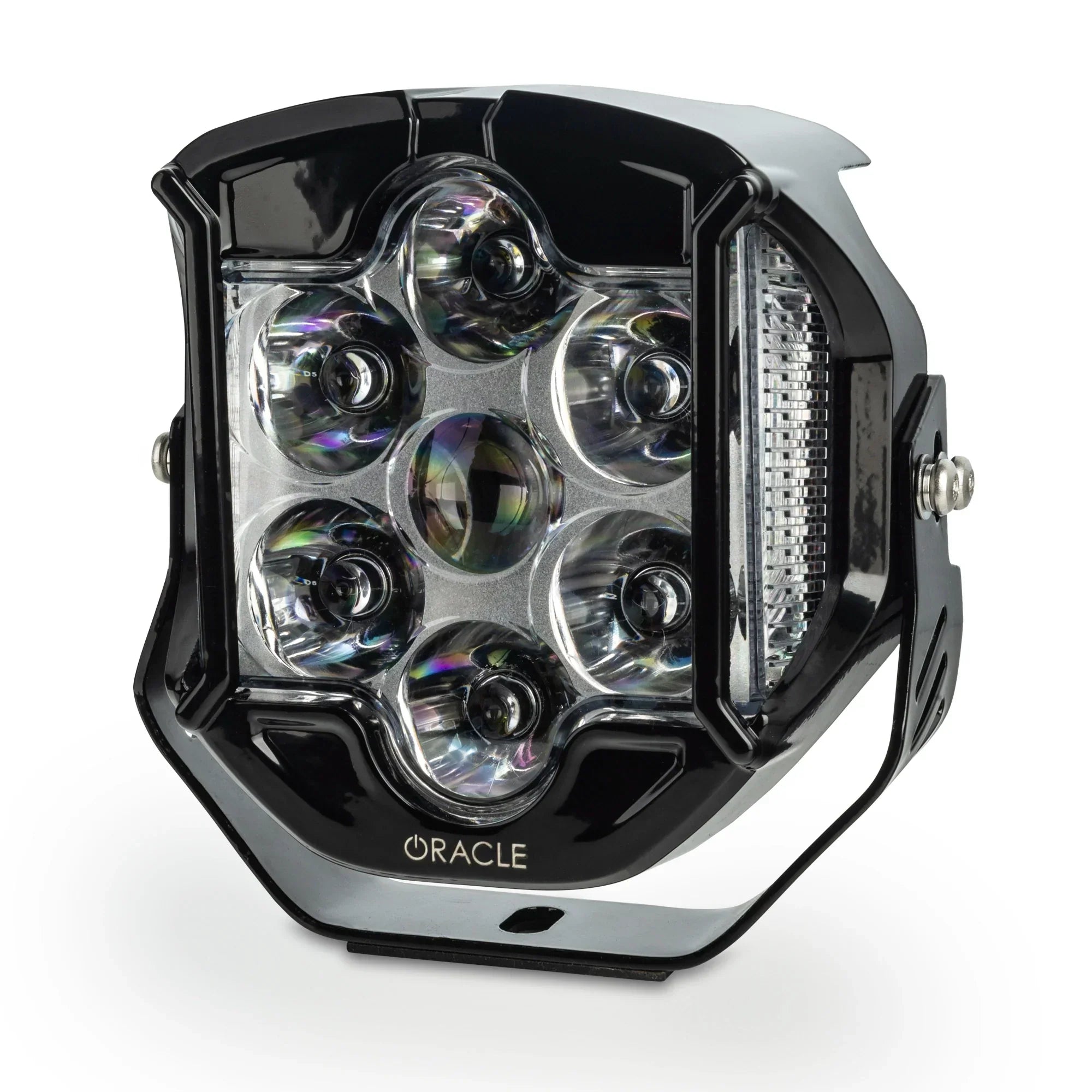

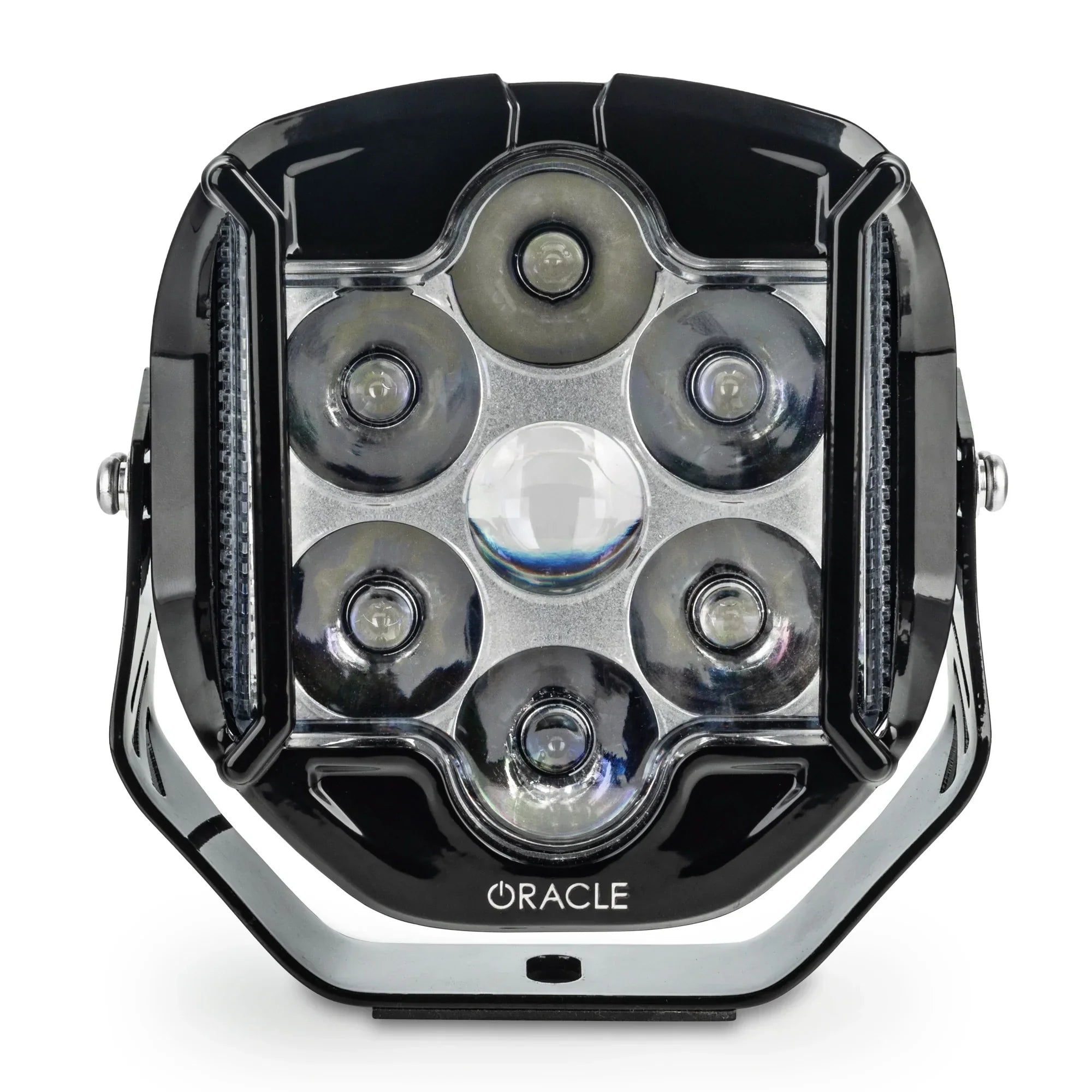

Built to outshine. Priced to win. Premium off-road output with IP69K durability and active cooling - outperforms the Baja Designs LP6 in both peak candela and throw distance, at a lower price point.
ORACLE Part #s: 5921-7-001 (LED+Laser) / 5921-7-504 (LED+LED)
Priced per single pod. Most customers purchase a pair.
ORACLE Part #s: 5921-7-001 (LED+Laser) / 5921-7-504 (LED+LED)
Priced per single pod. Most customers purchase a pair.
Beats LP6 by 2+ Football Fields 12K+ Raw Lumens Up to 2,755' Projection IP69K Rated Active Cooling Fan 5-Year Warranty
Product Overview ▼

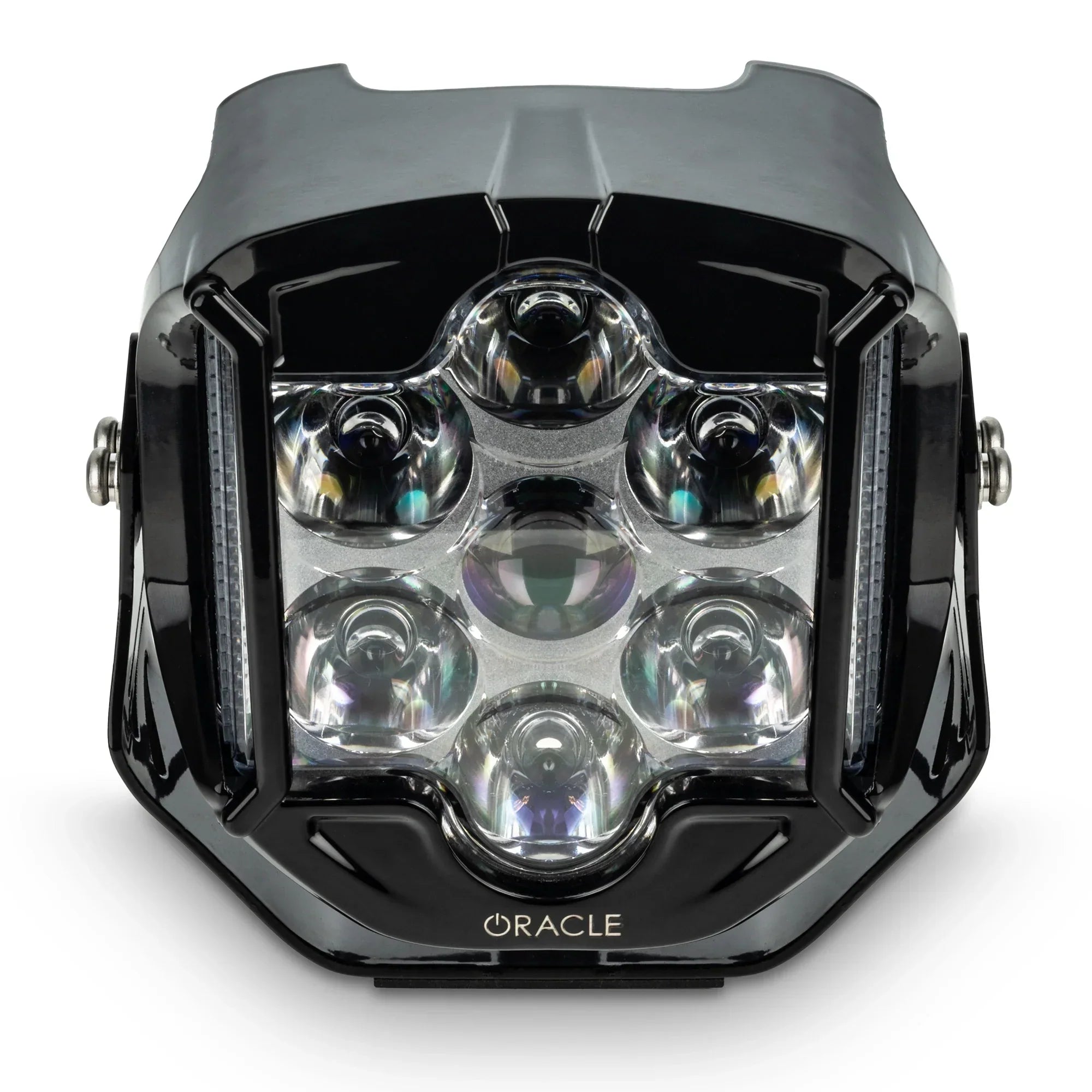

Using only high-quality components in a clean-slate design, VEGA 7 is optimized for performance, value, and durability. CAE analysis helped refine lens optics and thermal dynamics to create a product that's both powerful and reliable.
Key Features
- Over 12,000 raw lumens intense light output (variant dependent)
- Focused spotlight with up to 2,755 ft projection (variant dependent)
- Active Thermal Management via integrated high-efficiency cooling fan
- IP69K ingress protection for harsh environments

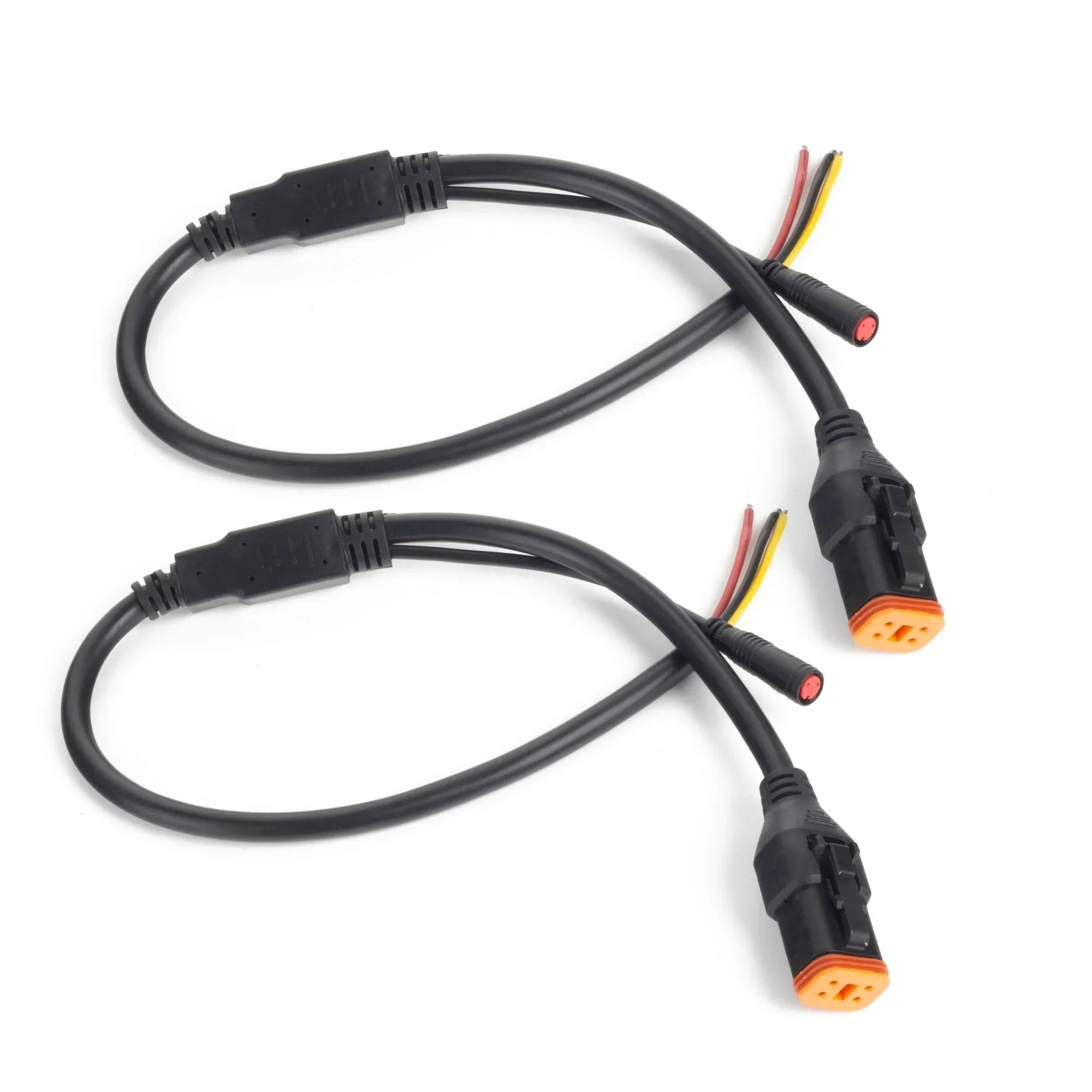

- OE-level Deutsch DT connector + 24" cable whip
- OSRAM BOOST HX primary chip platform
- Symmetrical beam pattern - mount upside down or right-side up
- 5-year replacement warranty
Details & Accessories

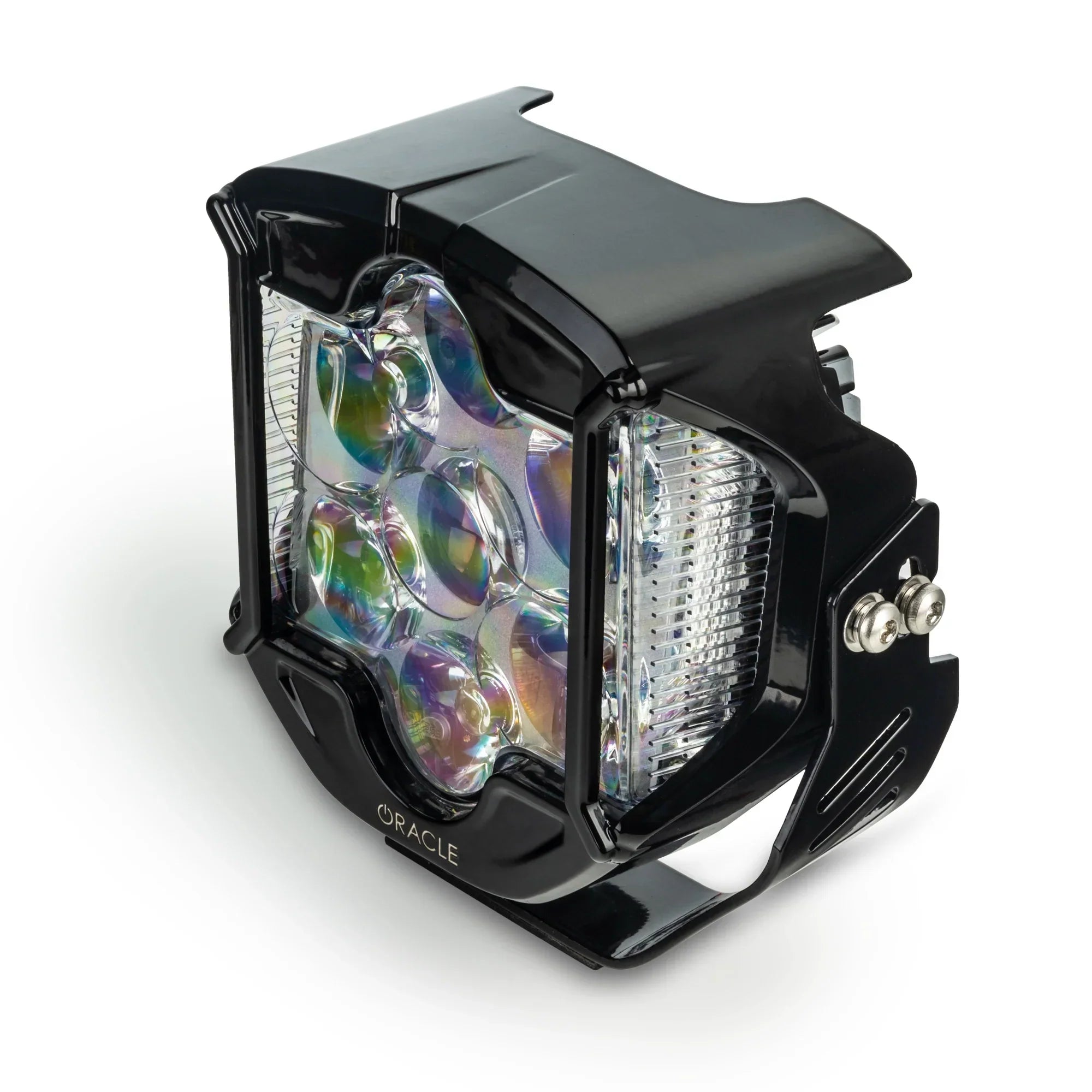

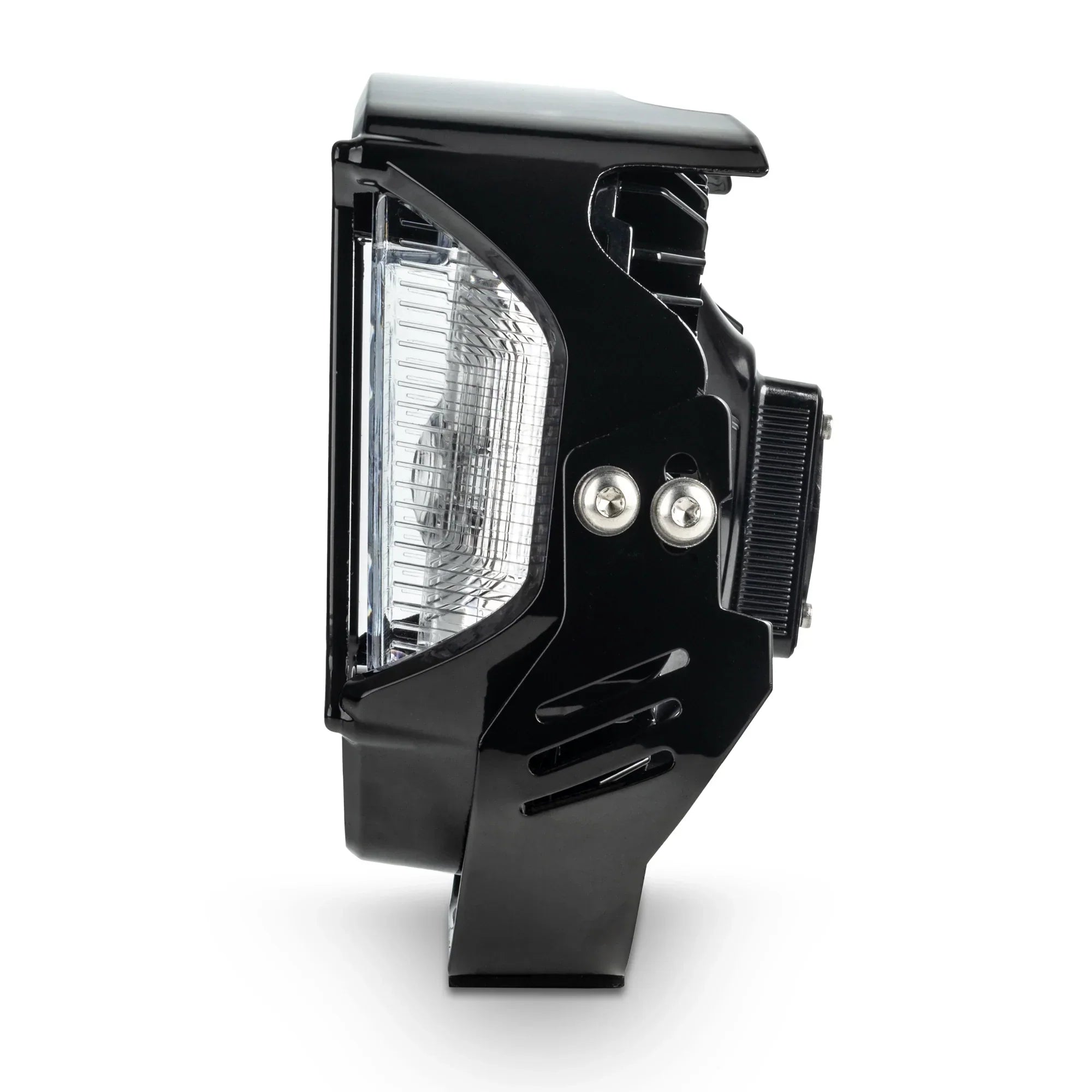

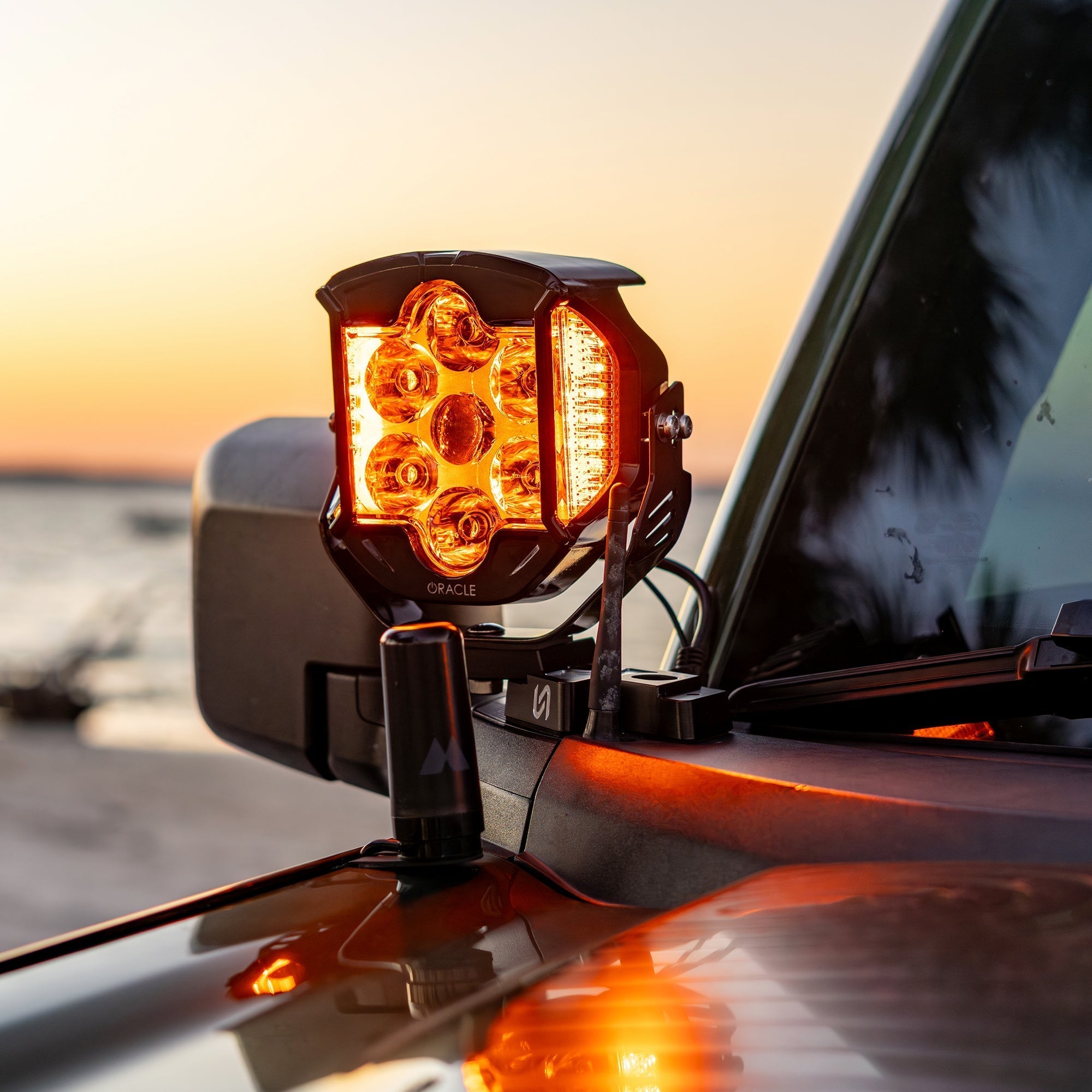

Versatility: Angled front lens + patent-pending styling that matches OEM surfaces in common mounting positions. Symmetrical optics keep beam orientation consistent.

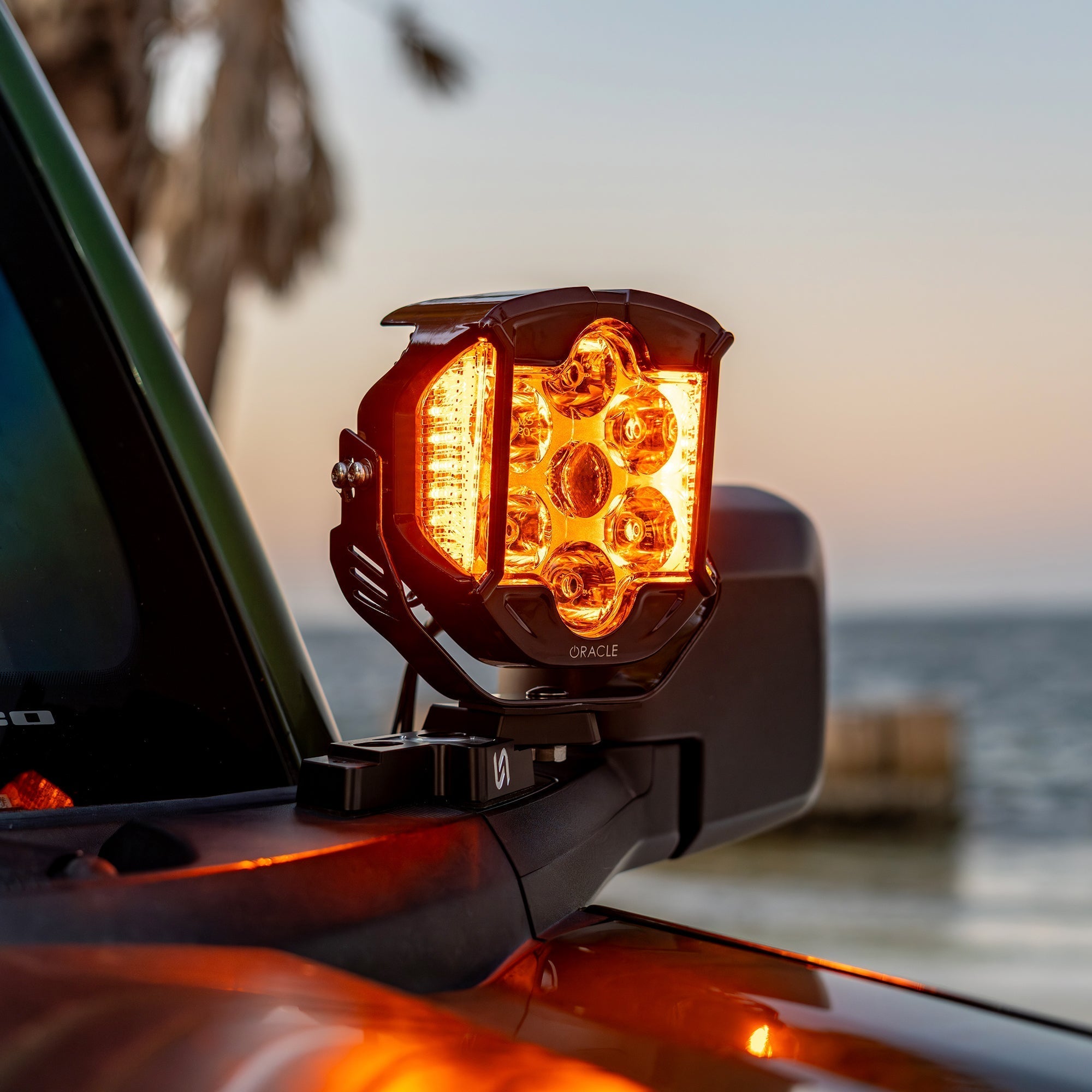

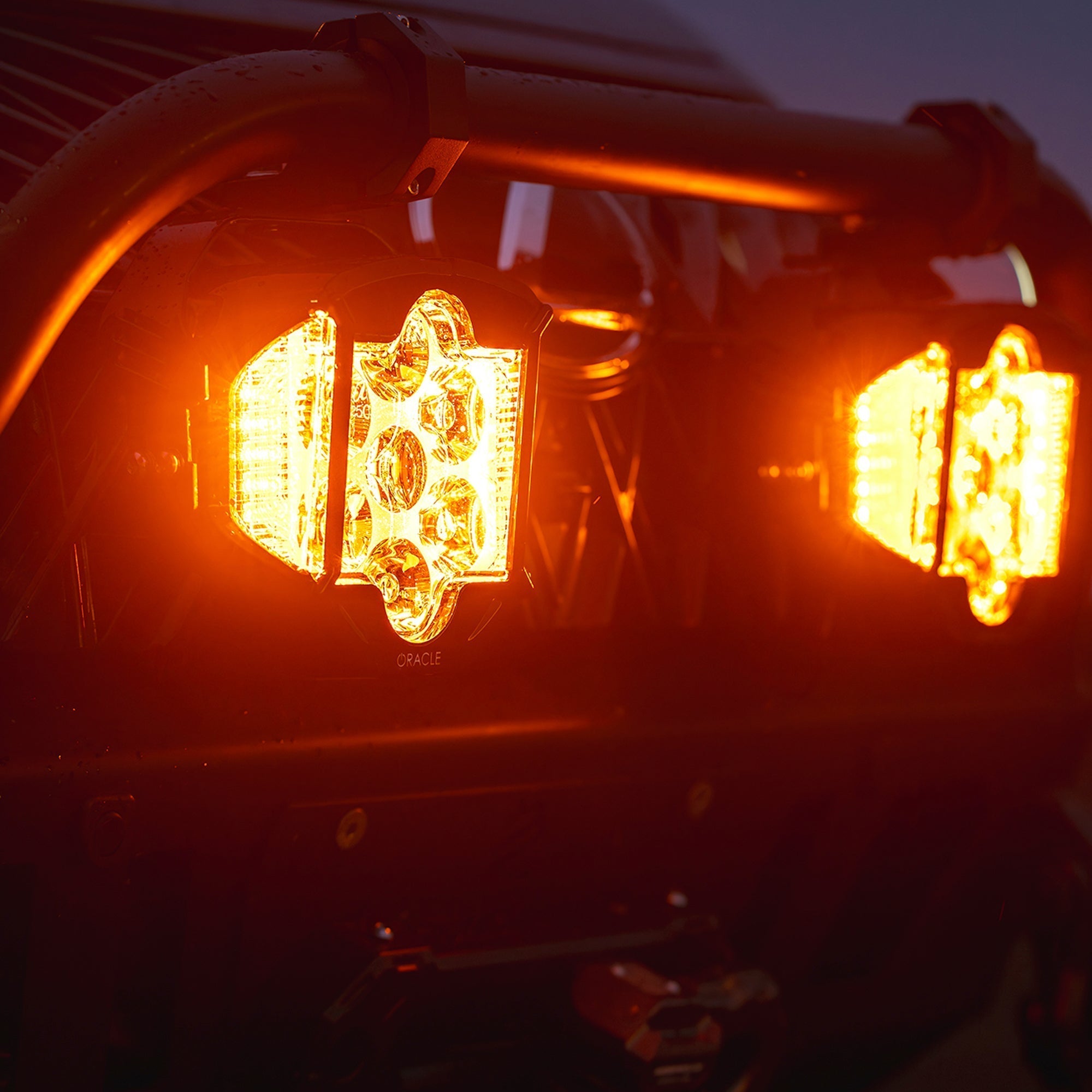

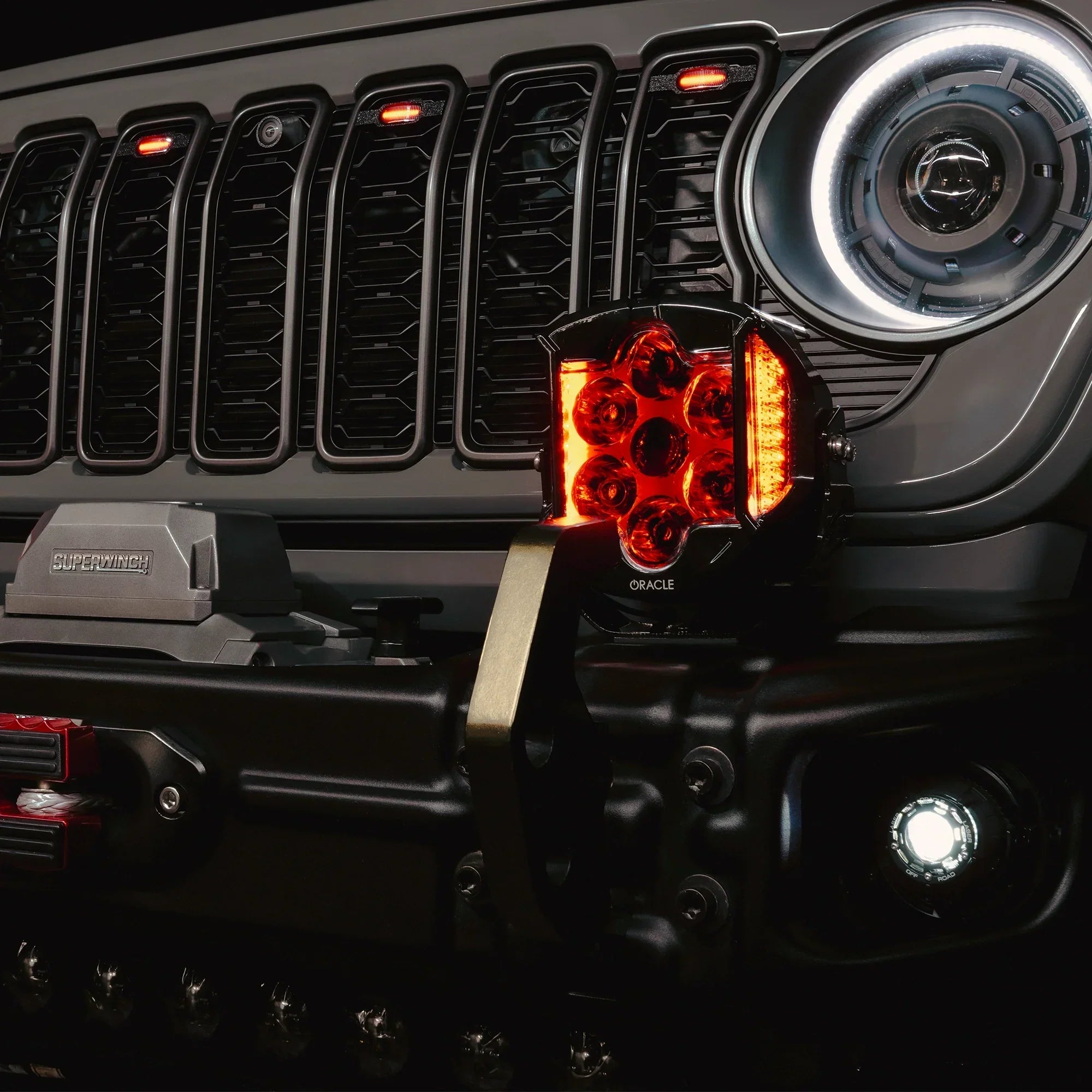

Lens Covers (Optional): Tool-free snap-fit covers sold separately to switch output color to Yellow or Amber, or use blackout covers for compliance needs.
Origin: Vega is one of the brightest stars in the northern sky - used as a baseline for photometric calibration. VEGA lights are built with that same "baseline" mindset: consistent output you can trust.
Performance & Technical Specifications ▼
Two variants shown below, plus shared specs.
Variant: LED + LED 135W
Projection2,460' / 750m
Lumens (Raw)11,990 lm
Tested Candela583,900
Center ChipQ4 LED
Variant: LED + Laser 135W
Projection2,755' / 840m
Lumens (Raw)12,340 lm
Tested Candela676,900
Center Chip15W Laser
Shared Specs (Both Variants)
Power (Watts)135W
Draw (Amps)8.5A
Input Voltage9-32V DC
OSRAM ChipBOOST-HX
Beam TypeSpotlight
Beam Angle40° Sym
Ingress RatingIP69K
LED Color CCT5000K
LED Lifetime50,000 hrs
Connector TypeDT06-4S
Lens MaterialHardcoat PC
Housing MaterialAluminum
Housing FinishBlack PC

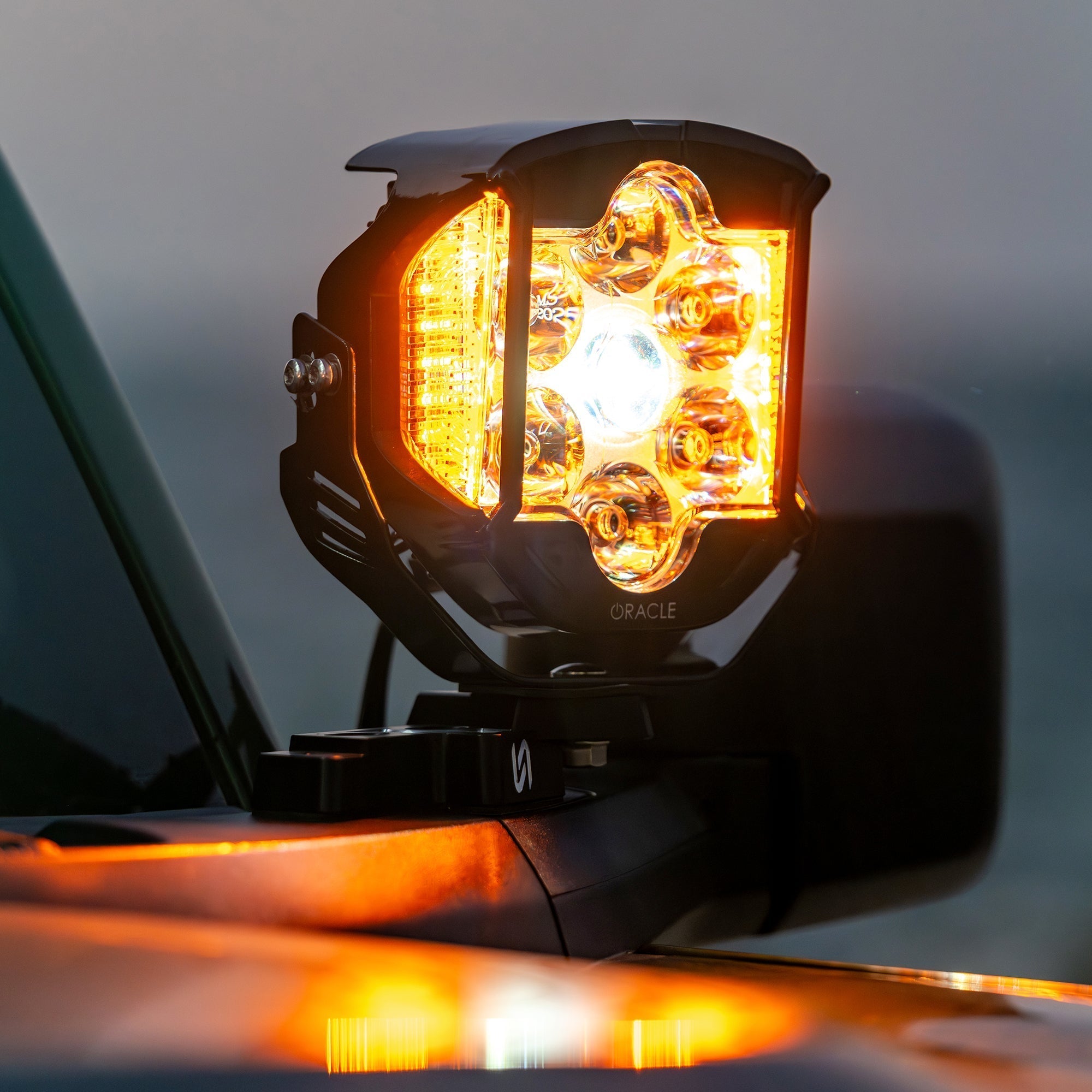

Marker ColorAmber
Marker Watts2W
Vehicle Fitment ▼
Universal Auxiliary Lighting Application: Compatible with off-road vehicles and equipment using a 9V-32V DC electrical system and a suitable mounting location.
Verify bracket clearance, circuit capacity, wiring-harness requirements, and local laws before installation.

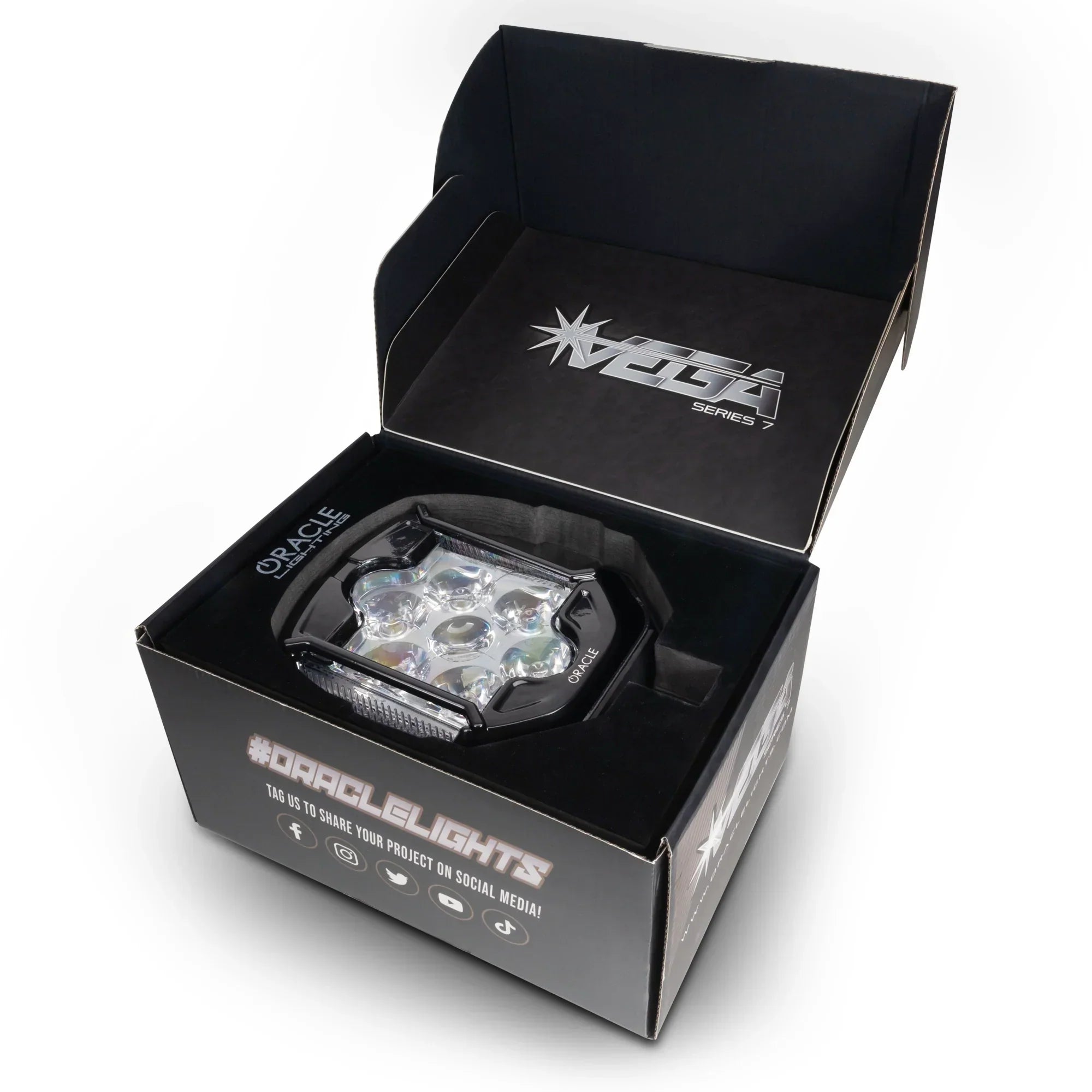

What's Included ▼
- VEGA 135W Series 7 Spotlight (LED+Laser or LED+LED) - single pod
- Deutsch DT 24" cable whip
- Standard universal bracket
- Stainless steel hardware set
Installation Guide & Resources ▼
Estimated Installation Time: 2+ hours
Experience Level: Experienced
More involved mechanical or electrical work is expected. Professional installation may be appropriate.
Experience Level: Experienced
More involved mechanical or electrical work is expected. Professional installation may be appropriate.
Certifications & Downloads
Product Videos ▼
Frequently Asked Questions ▼
Engineered to Lead, Priced to Win

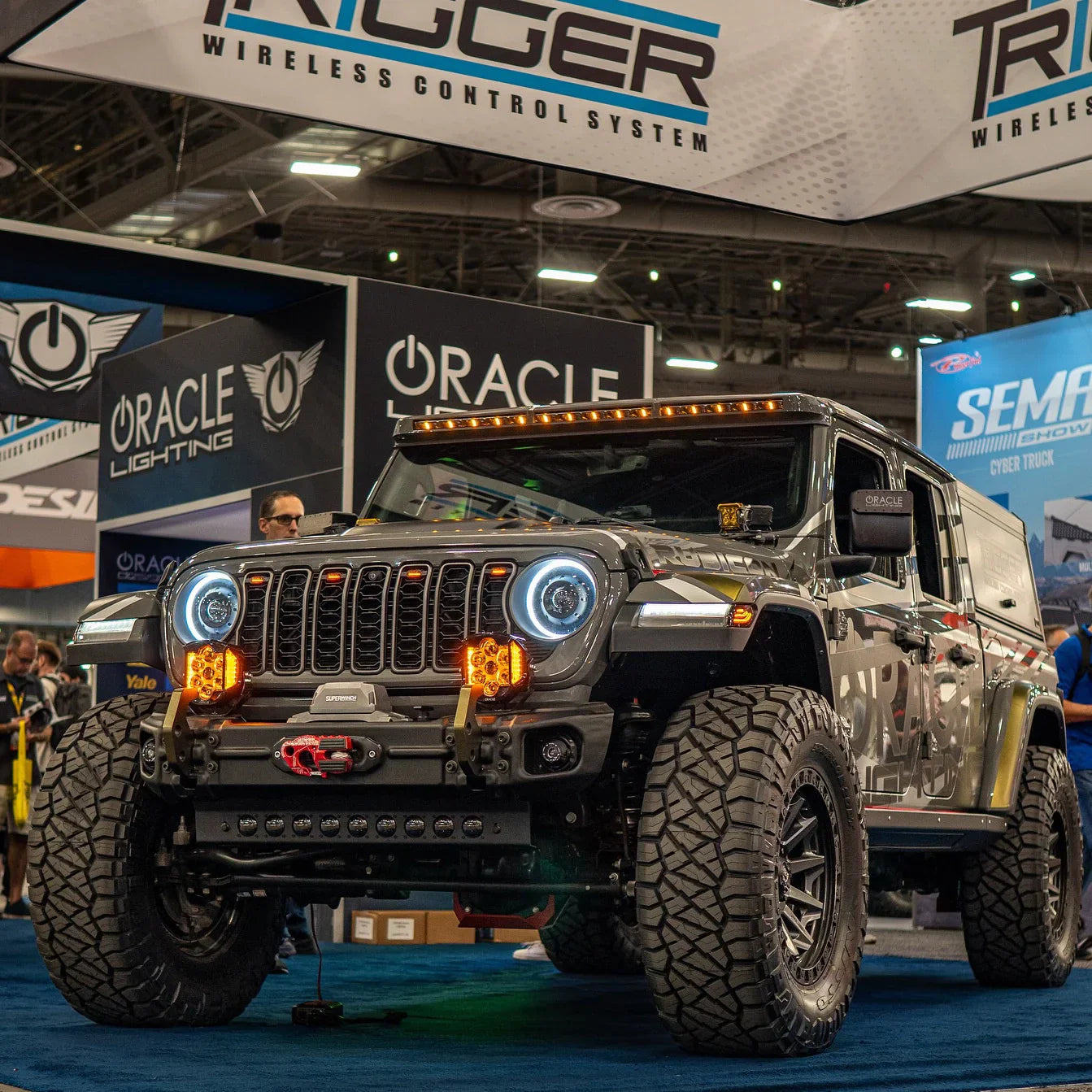

The VEGA 7 isn't just an incremental upgrade - it's a full reinvention of what a compact off-road auxiliary light can do. Engineered from the ground up and unveiled at the 2025 SEMA Show, the VEGA 7 outperforms competitors like the Baja Designs LP6 in both raw candela output and throw distance - by more than two football fields - while coming in at a more accessible price point.
Available in two performance configurations, LED+LED (Part #5921-7-504) and LED+Laser (Part #5921-7-001), the VEGA 7 sets a new benchmark for off-road lighting performance, durability, and value.
Performance Specs That Demand Attention

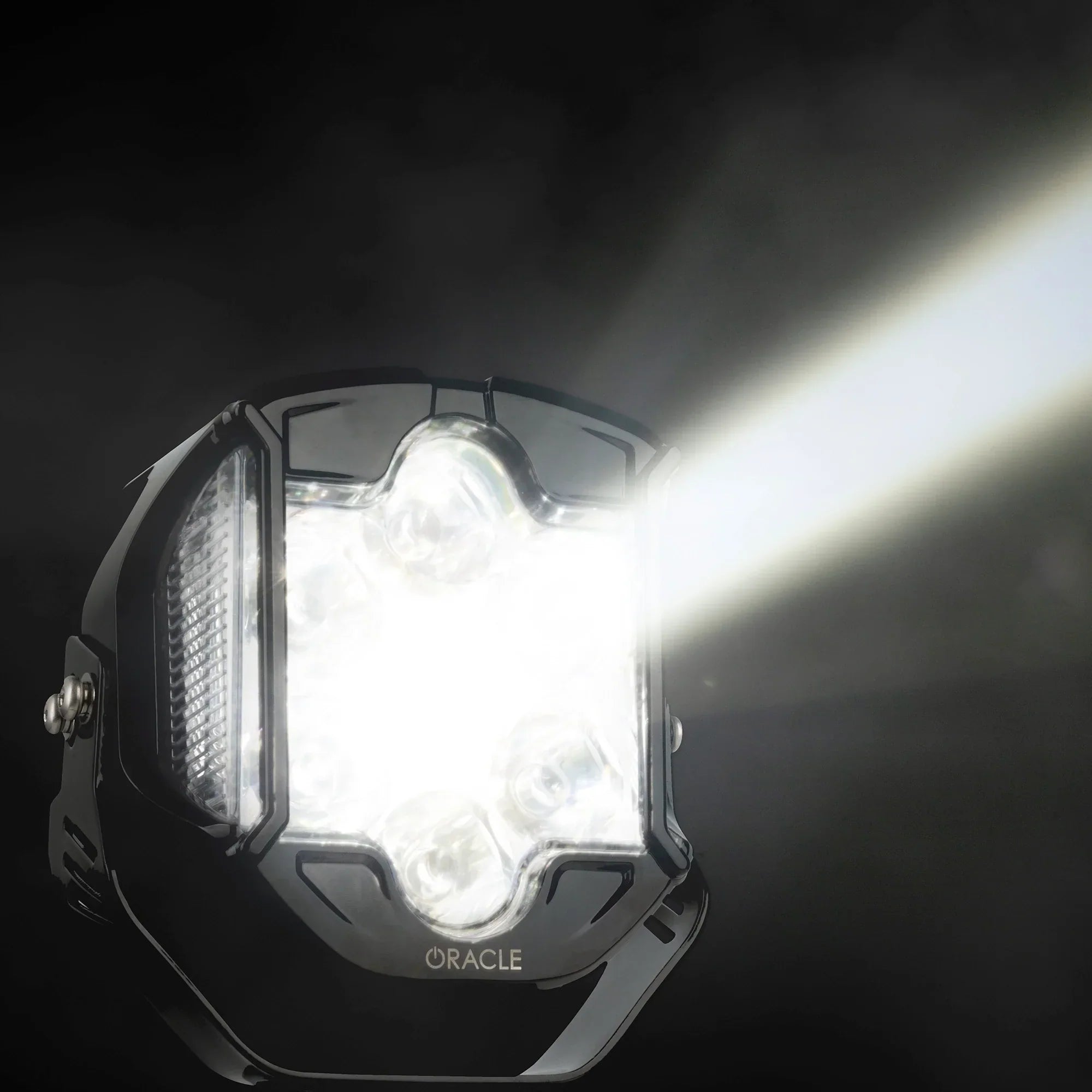

Unmatched Light Output

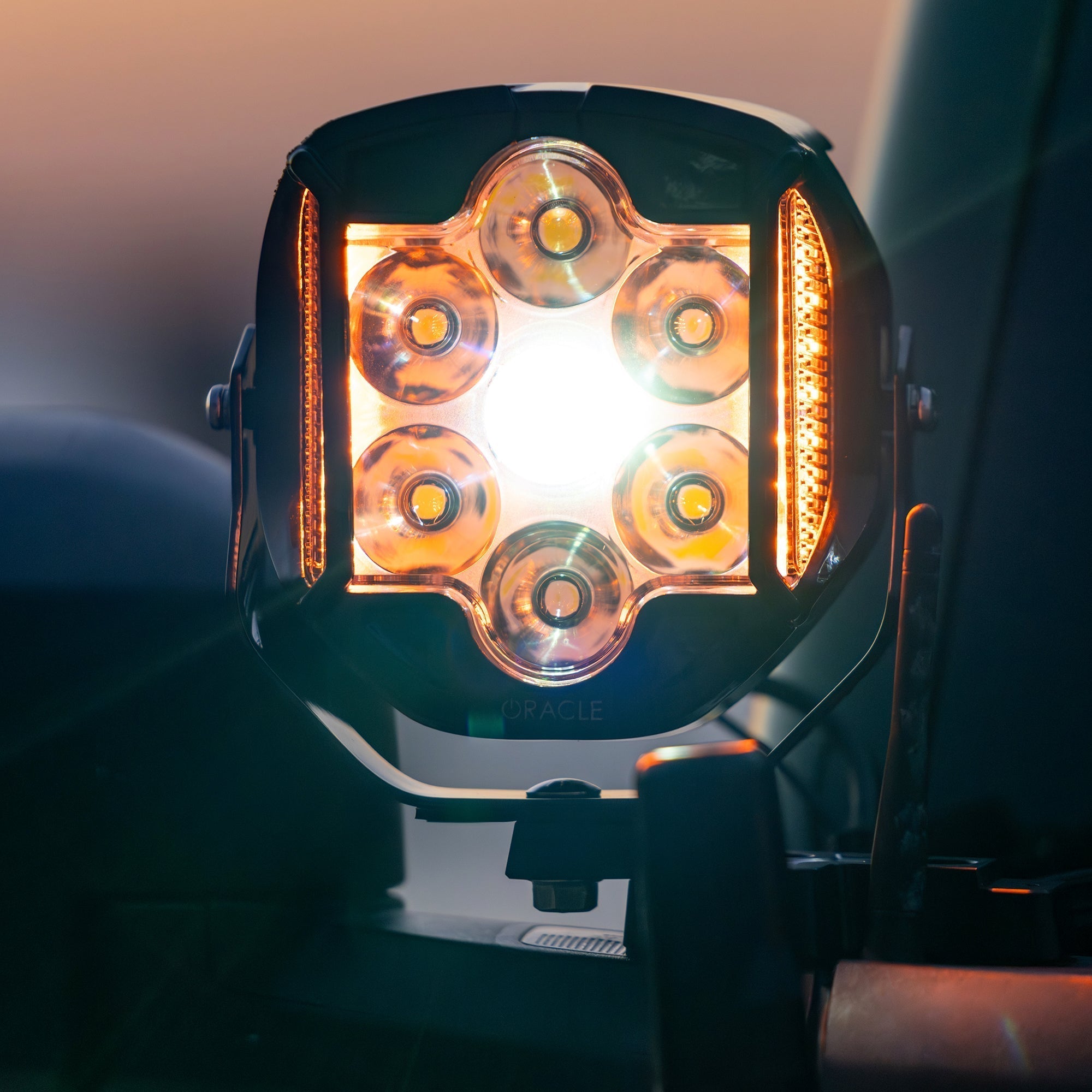

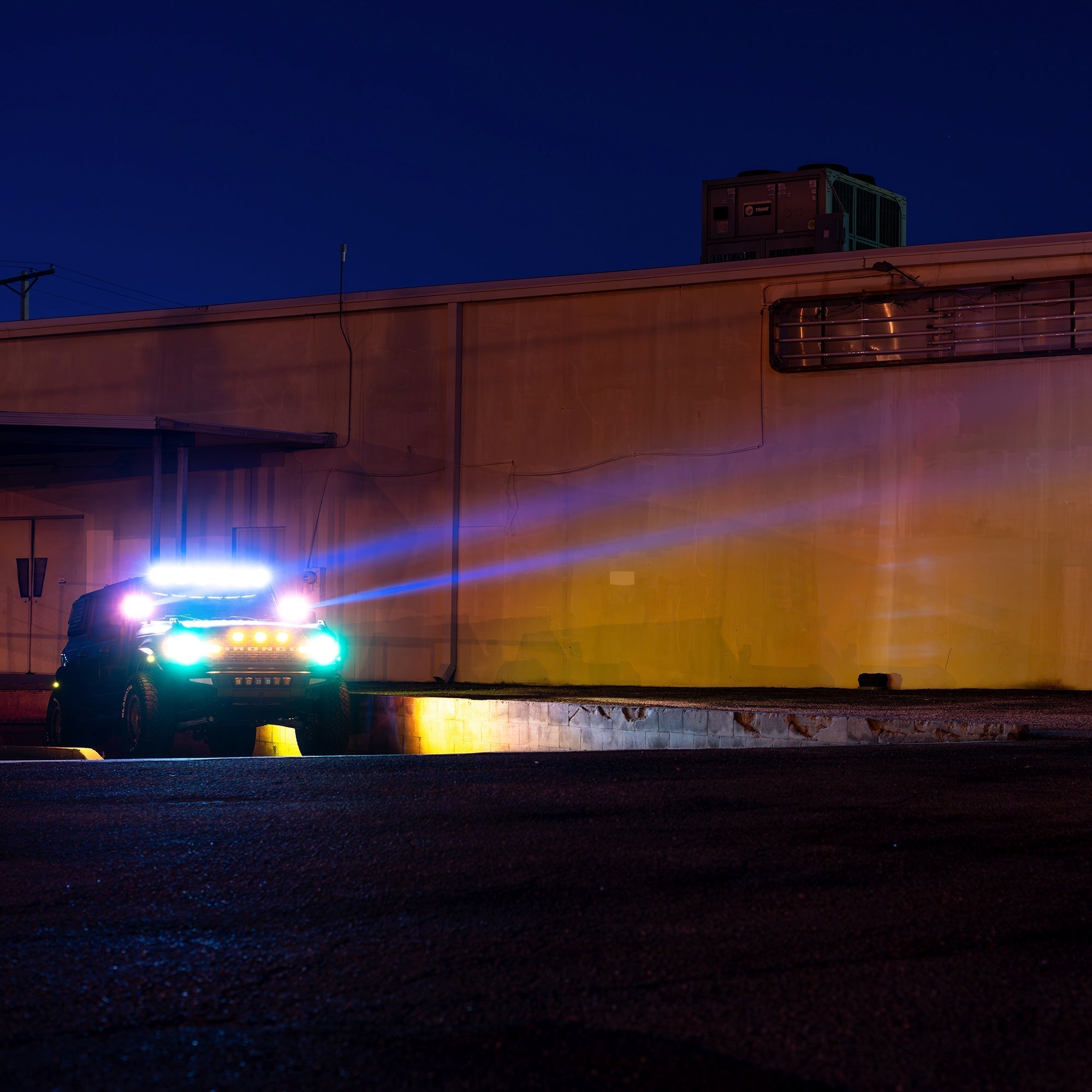

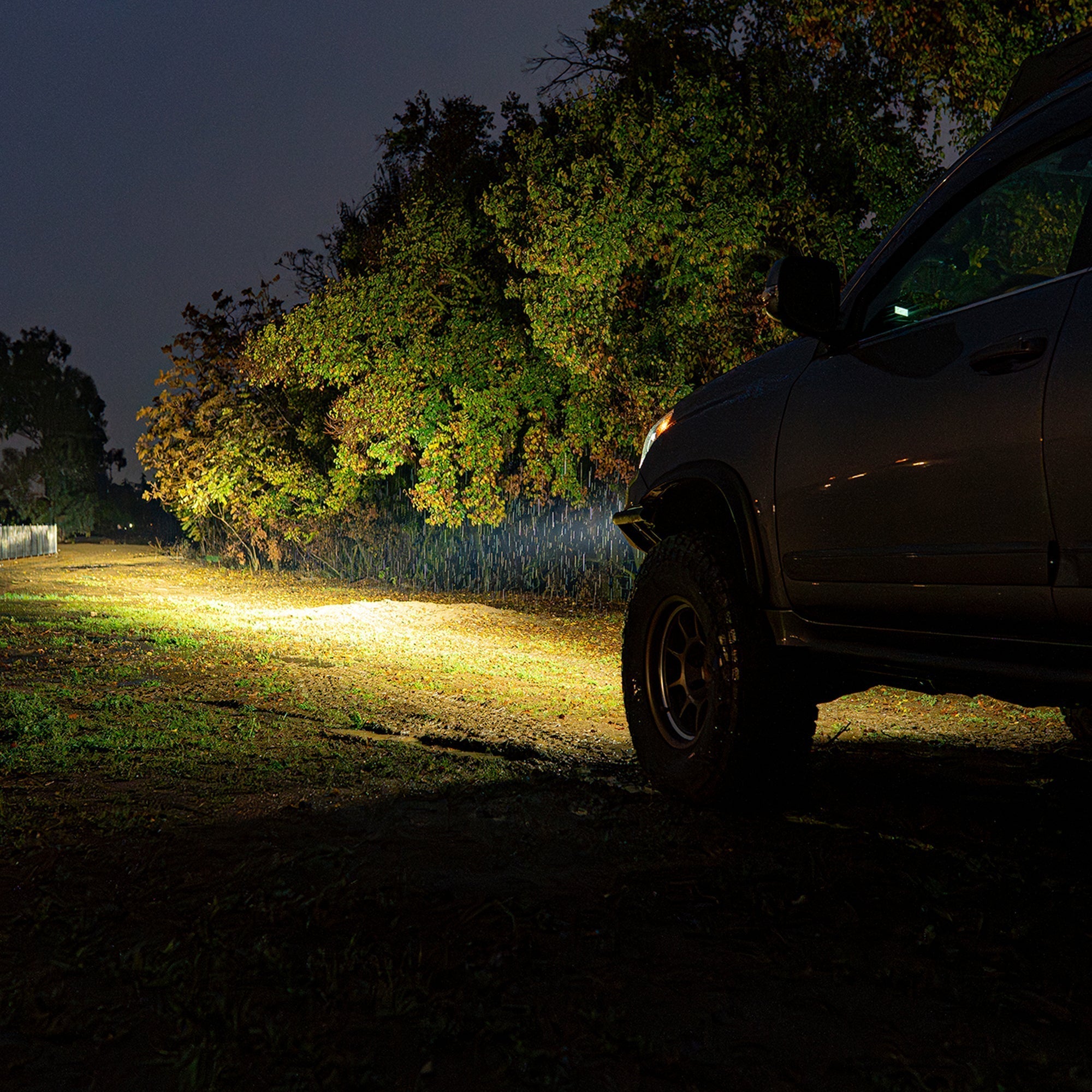

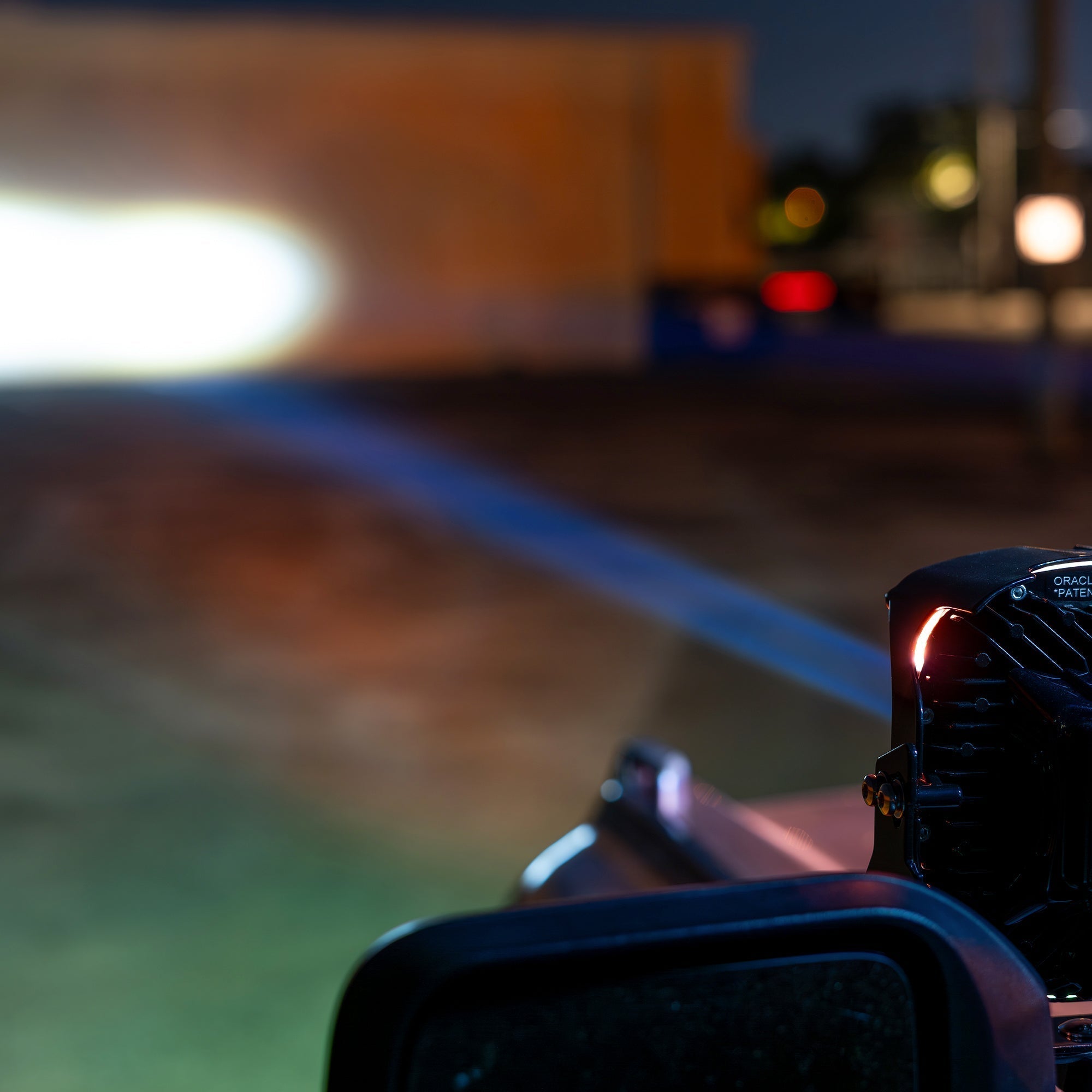

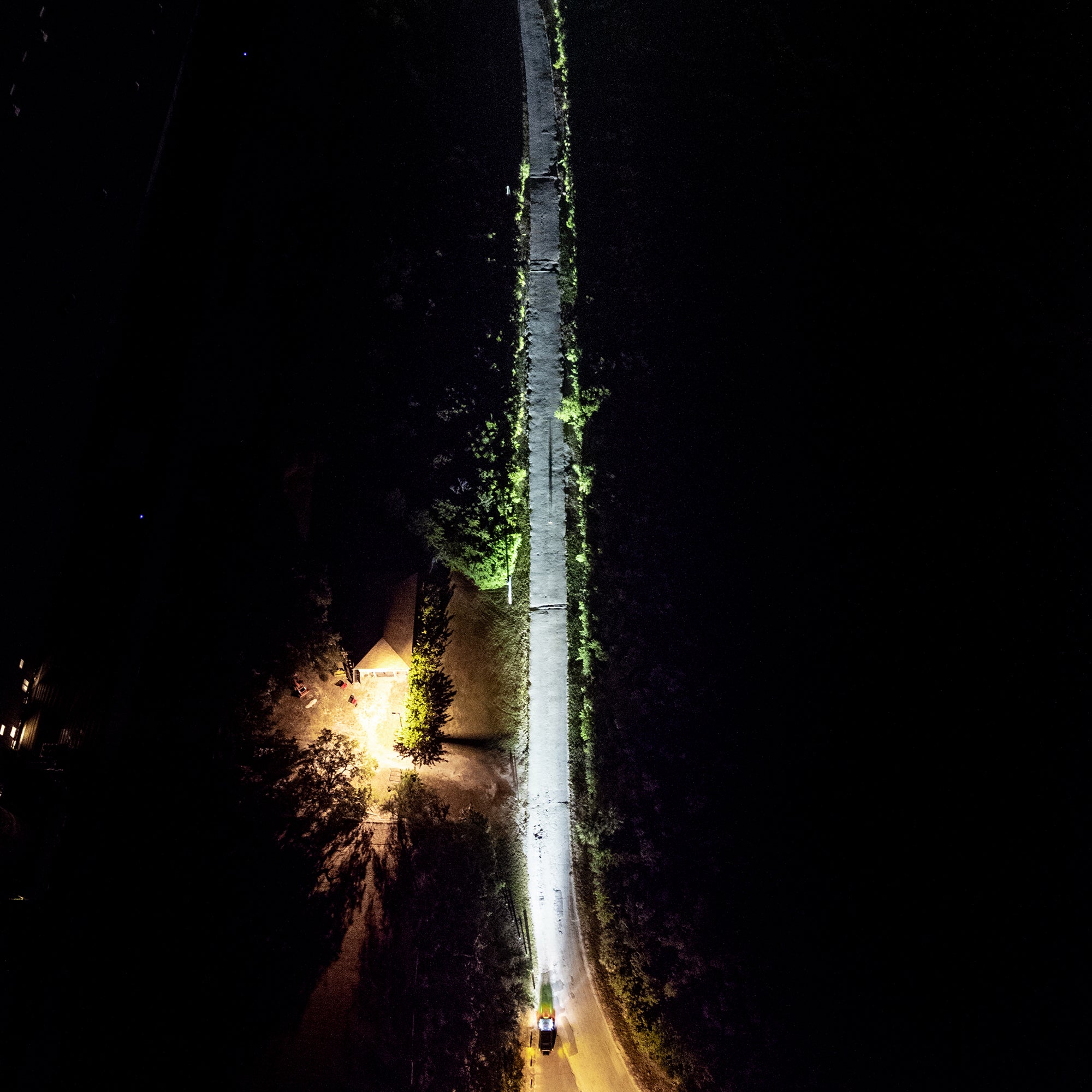

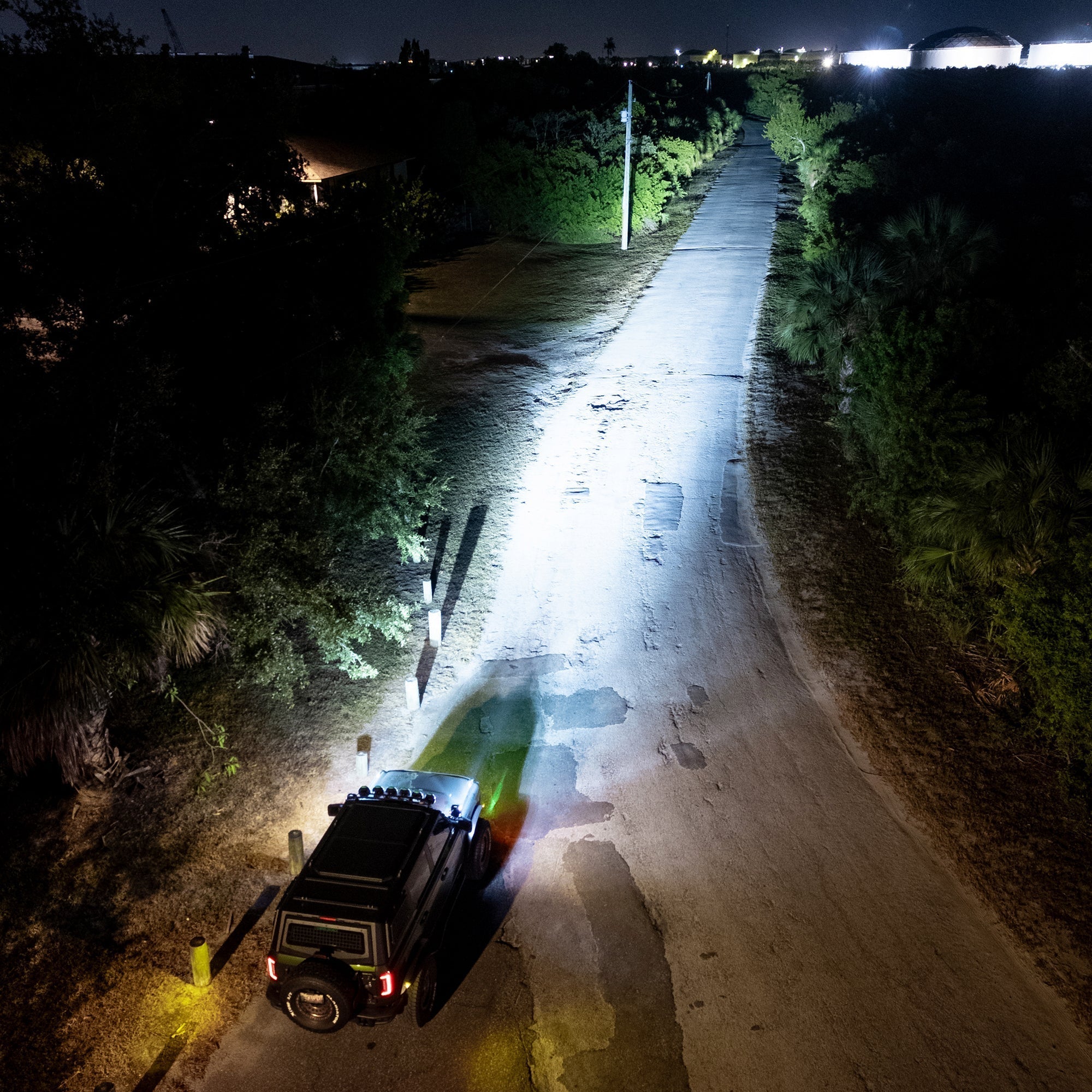

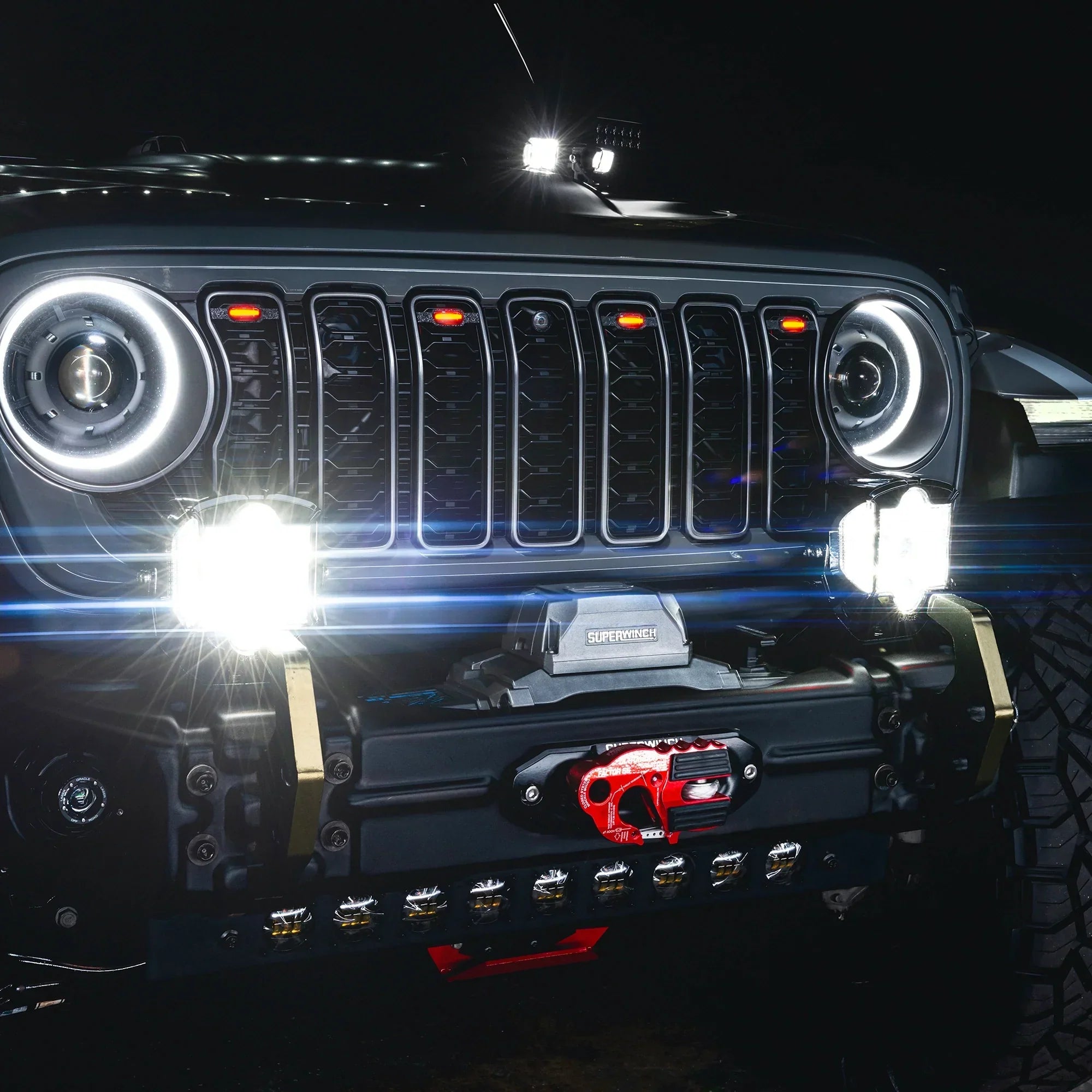

The LED+Laser configuration delivers an astonishing 676,900 candela and a projection distance of 840 meters (2,755 feet) - the kind of reach that turns night trails into daylight. The LED+LED version produces over 12,000 raw lumens with a focused spotlight beam. Both configurations use a symmetrical 40° beam angle that can be mounted right-side up or inverted without changing the beam pattern.
OSRAM BOOST-HX LED Chips
At the heart of the VEGA 7 are premium OSRAM BOOST-HX LED chips, chosen for their exceptional brightness, color accuracy, and long-term reliability - the same class of components used in high-end automotive OEM applications.

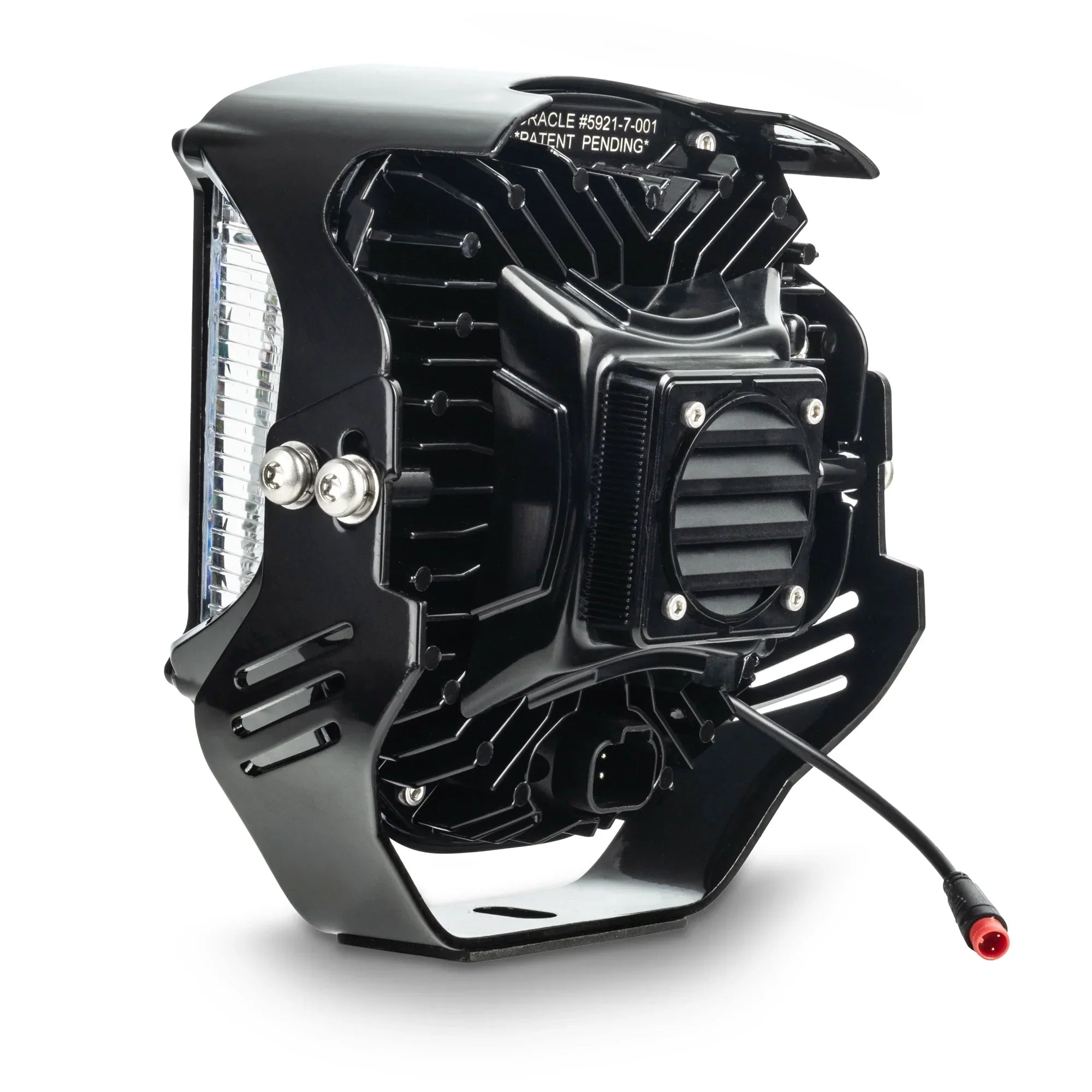

Active Cooling Technology
A built-in high-efficiency cooling fan continuously circulates air through specially designed rear fins, maintaining optimal LED operating temperatures even during sustained, high-output use. No thermal dimming, no performance degradation.
Built for the Harshest Conditions on Earth

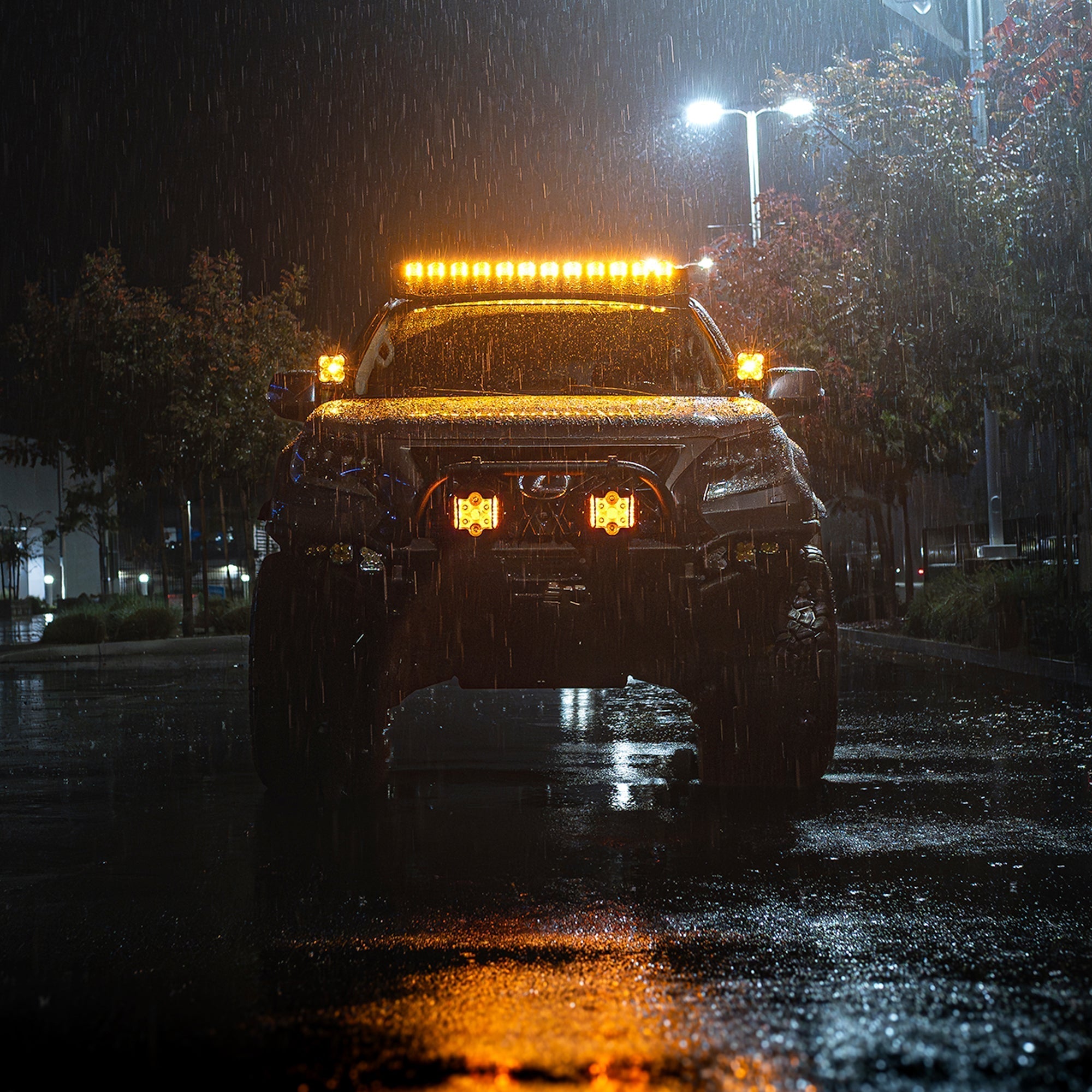

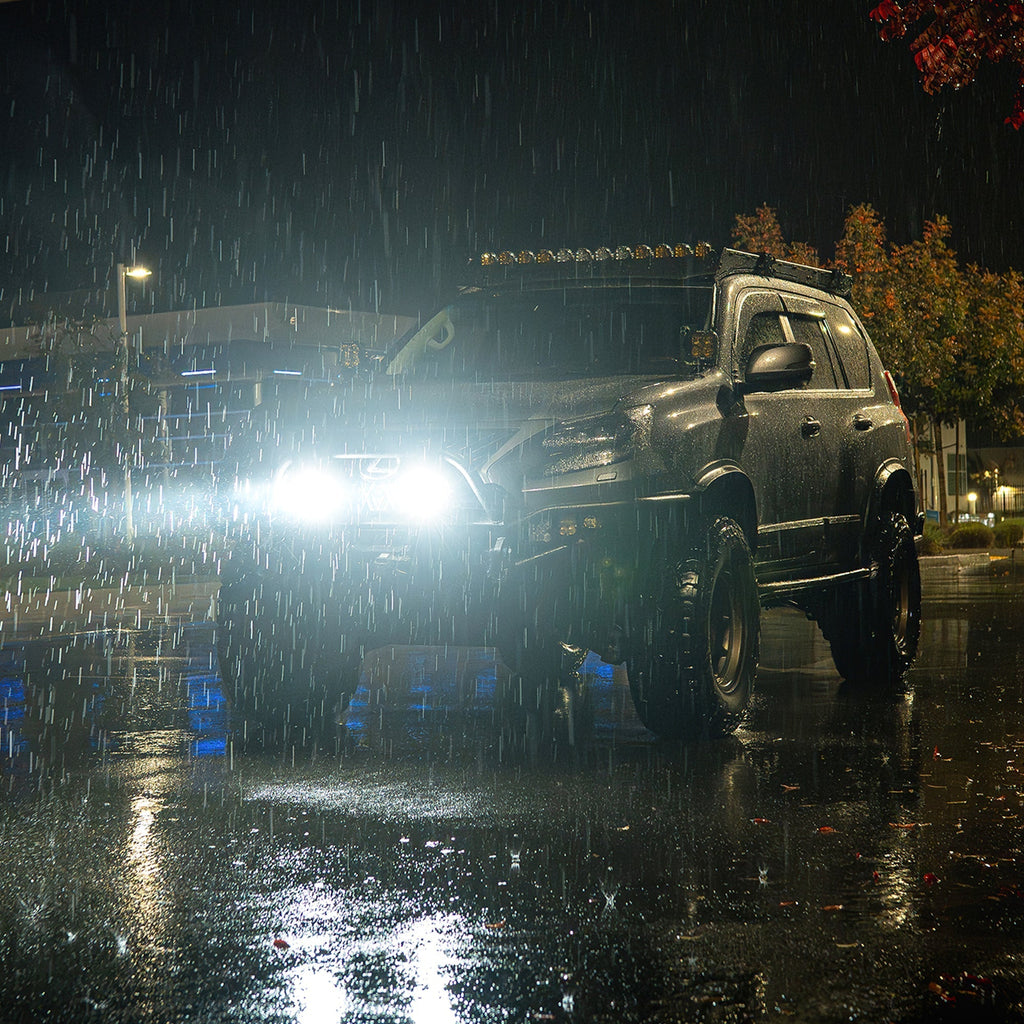

IP69K Ingress Protection

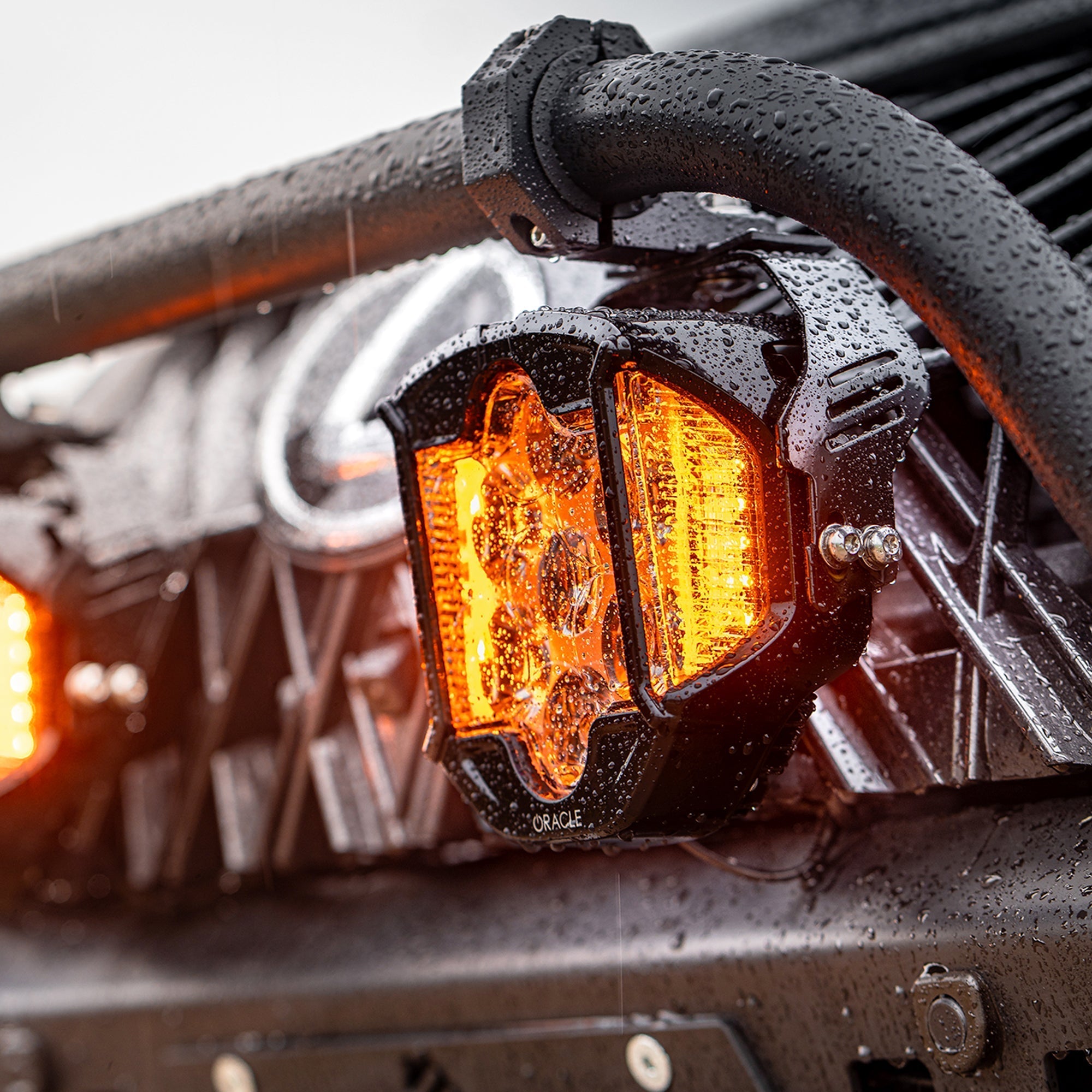

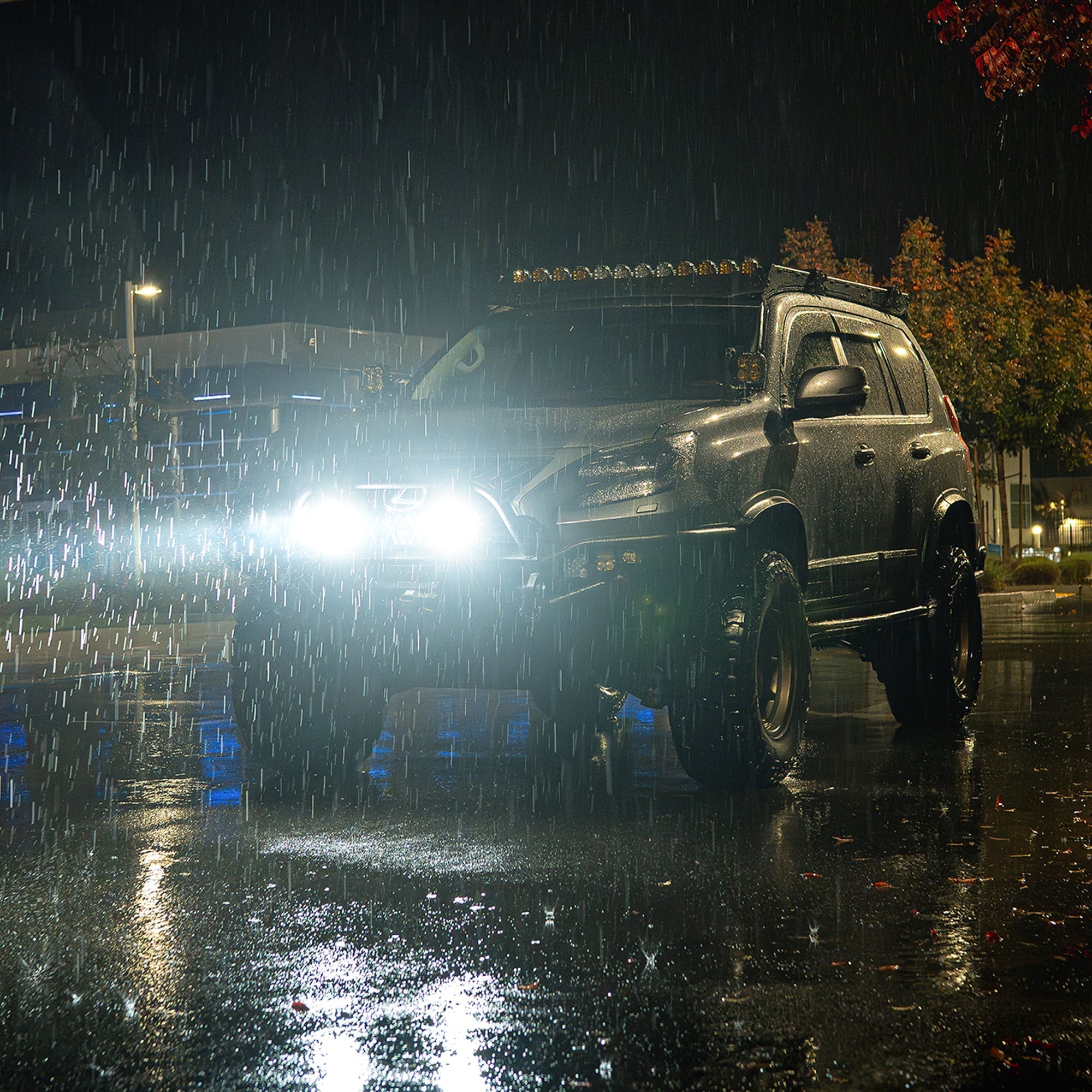

The VEGA 7 carries an IP69K rating - the highest level of ingress protection available. Whether you're blasting through river crossings, muddy desert trails, or driving rain, the VEGA 7 is sealed to keep performing.
OE-Level Deutsch DT Connectors
The VEGA 7 uses Deutsch DT06-4S connectors - the same connectors found in OEM automotive and military-grade applications - for a secure, vibration-resistant, weatherproof electrical connection.
VEGA 7 vs. The Competition
In third-party and lab-based testing, the LED+Laser VEGA 7 outshines the Baja Designs LP6 in both peak candela and throw distance - past the 2,700-foot mark - at a lower price point.
FAQs
Q: What is the difference between the LED+LED and LED+Laser configurations?
The LED+Laser (Part #5921-7-001) adds a center laser projection element, increasing throw distance to 840m (2,755 ft) and peak candela to 676,900. The LED+LED (Part #5921-7-504) delivers over 12,000 raw lumens in a pure LED spotlight configuration.
Q: Do I need to buy two for a pair?
Yes - this listing is for a single pod. Most customers purchase two for a matched ditch light or A-pillar setup. Add two to your cart for a complete pair.
Q: Is the ORACLE VEGA 7 waterproof?
Yes. The VEGA 7 carries an IP69K ingress protection rating - fully sealed against dust and rated to withstand high-pressure, high-temperature water jets.

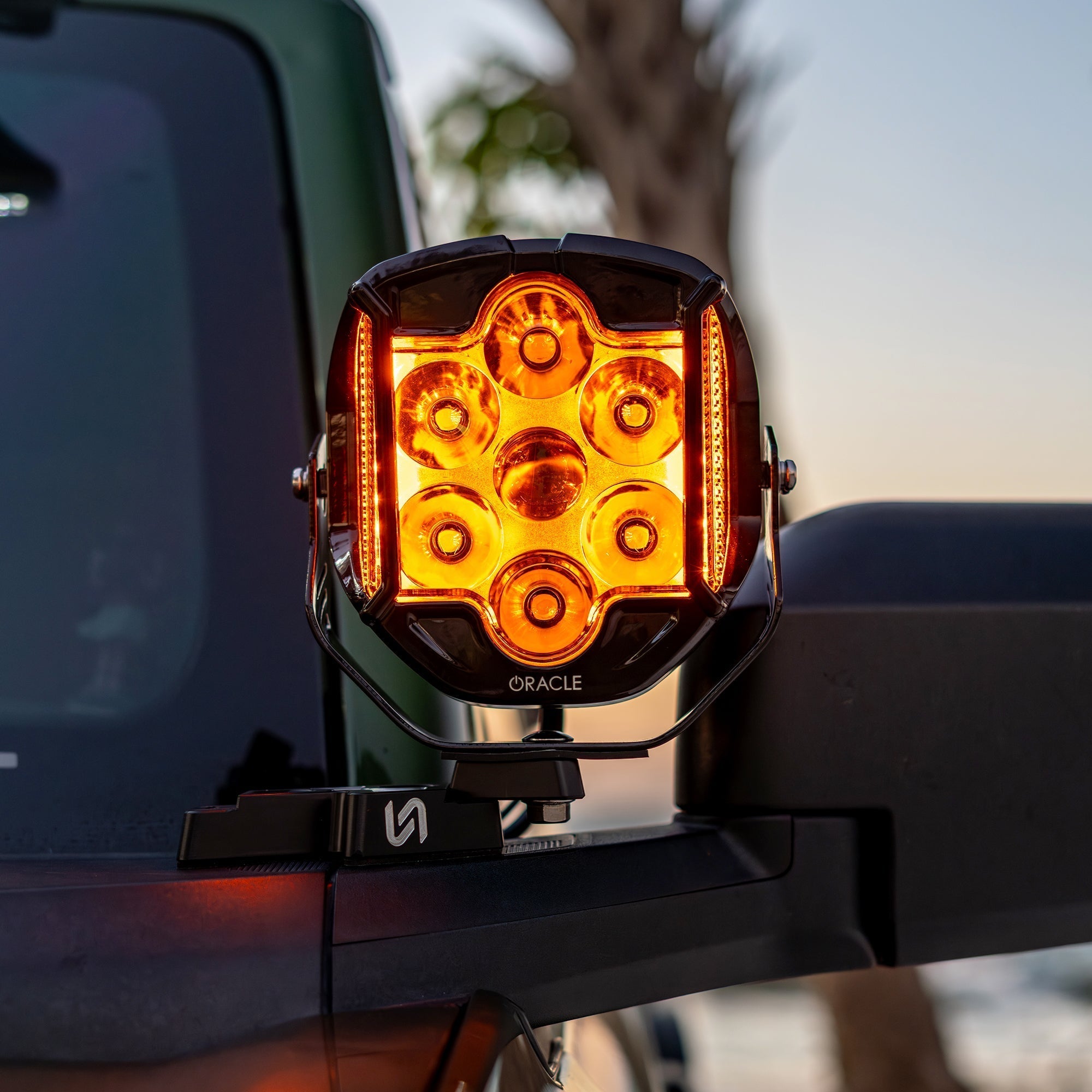

Q: Can the VEGA 7 be mounted upside down?
Yes. The horizontally symmetrical beam pattern means output is identical whether mounted right-side up or inverted - ideal for ditch mounts, bull bars, bumpers, and A-pillars.
Q: How does the VEGA 7 compare to the Baja Designs LP6?
In independent lab testing, the VEGA 7 LED+Laser outperforms the LP6 in both peak candela and throw distance by more than two football fields, at a lower price point.
Q: What connectors does the VEGA 7 use?
The VEGA 7 uses Deutsch DT06-4S connectors - an OEM- and military-grade standard known for superior vibration resistance, weatherproofing, and long-term reliability.
Complete Your Build ▼
Everything you need to wire, control, expand, and customize your VEGA 7 setup.
VEGA Series 7 Single 15' Wiring Harness (5921-7-S)
Single-light cable assembly with Deutsch DT06-4P connector and bare wire leads. Ideal for connecting one VEGA 7 directly to an existing AUX switch system or power management system.
Shop Wiring Harness
VEGA Series 7 Quad Wiring Harness (5921-7-Q)
Heavy-duty plug-and-play harness for powering up to four VEGA 7 lights. Includes dual 80A relays, 12AWG wiring, Deutsch DT06 4-pin connectors, 60A MAXI fuse, and 3-way switch.
Shop Quad Harness
ORACLE Lighting VEGA 40W Series LED Light Pod Spotlights (Pair)
Compact 40W auxiliary LED spotlights - a great complement to your VEGA 7 setup for fill lighting, accent lighting, or secondary off-road illumination.
Shop VEGA 40W Pair
TRIGGER 4+ Wireless Accessory Control System
Control your VEGA 7 lights and other accessories wirelessly with the TRIGGER 4+ - a 4-channel wireless switch system designed for clean, switch-panel-free installs.
Shop TRIGGER 4+
TRIGGER 6-Shooter Wireless Accessory Control System
Six channels of wireless control for your full lighting and accessory setup. Perfect for builds running VEGA 7 lights alongside other ORACLE or aftermarket accessories.
Shop TRIGGER 6-Shooter
ORACLE Lighting VEGA Series 7 Amber Lens Cover (5921-7-AC)
Tool-free snap-fit amber lens cover for the VEGA Series 7. Switches your output color to amber for trail compliance, fog conditions, or a custom look.
In Production - Coming Soon
ORACLE Lighting VEGA Series 7 Black Lens Cover (5921-7-AC)
Tool-free snap-fit blackout lens cover for the VEGA Series 7. Ideal for compliance needs or protecting the lens when lights are not in use.
In Production - Coming Soon
ORACLE Lighting VEGA Series 7 Yellow Lens Cover (5921-7-YC)
Tool-free snap-fit yellow lens cover for the VEGA Series 7. Converts output to selective yellow for improved visibility in fog, rain, and dust.
In Production - Coming Soon
